【前端】canvas使用


阅读数:

简单用法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
<!doctype html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport"
          content="width=device-width, user-scalable=no, initial-scale=1.0, maximum-scale=1.0, minimum-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>Document</title>
</head>
<body>
<!-- canvas三要素 -->
<!--
id: 作为唯一标识
width: 画布内容宽度的像素大小
height: 画布内容高度像素大小
这里的width和height与style的宽度和高度是有区别的, style是对元素的放大缩小。
-->
<canvas id="canvas1" width="600" height="600">您的浏览器不支持canvas，请升级浏览器！</canvas>
<!-- 在早期播放视频用flash，如果不支持的话其实也可以用canvas，虽然canvas是H5的标准，但是在11年就有了 -->
<script>
    // 关于这些API的完整使用方法请参考：https://developer.mozilla.org/zh-CN/docs/Web/API/CanvasRenderingContext2D

    // 画布对象
    var canvas1 = document.getElementById('canvas1')
    // 上下文对象（画笔对象）
    // 2d: 代表二位平面图，还有一个参数是 webgl: 代表3d绘图协议
    // webgl通常用来做3d游戏，但是通常不使用原生API。
    // three.js可以用来开发小型的3d游戏，大型3d游戏可以用虚幻4引擎。国内的H5游戏用白鹭引擎。
    var ctx = canvas1.getContext('2d')
    // 查看对象的设置和方法
    console.log(ctx)

    // // 绘制矩形（x, y, widht, height）
    // ctx.rect(50,50,300,300)
    // ctx.fillStyle = 'aqua'  // 设置填充样式
    // ctx.fill()  // 填充
    // ctx.lineWidth = 10  // 设置描边样式
    // ctx.strokeStyle = 'salmon'  // 设置描边样式
    // ctx.stroke() // 描边

    // // 绘制路径
    // ctx.beginPath()  // 设置开始路径
    // ctx.moveTo(50,50)  // 设置绘制的起点
    // ctx.lineTo(50,300)  // 设置经过某个位置
    // ctx.lineTo(300,100)  // 设置经过某个位置
    // ctx.lineTo(300,250)  // 设置经过某个位置
    // ctx.closePath()  // 设置结束路径（如此可以闭合路径）
    // ctx.lineWidth = 20   // 设置线条的宽度
    // ctx.strokeStyle = 'aqua'  // 设置线条的颜色
    // ctx.lineCap = 'round' // 设置描边线条的结束端点样式（圆角）
    // // ctx.lineJoin = 'round'   // 设置两条线相交时，所创建的拐角类型
    // // ctx.miterLimit = 2   // 设置最大的衔接长度（lineJoin需要是默认值）
    // ctx.stroke()  // 描边
    // // ctx.fill()  // 填充

    // // 绘制圆(圆心在x轴上的坐标x, 圆心在y轴上的坐标y, 半径长度r, 起始角度start, 结束角度stop,是否是逆时针)
    // ctx.beginPath()
    // ctx.arc(300,300,100,0,Math.PI,false)
    // ctx.fillStyle = 'bisque'
    // ctx.fill()
    // ctx.stroke()

    // // 绘制文本（文字内容text, 起点x, 起点y）
    // ctx.font="30px 微软雅黑"
    // ctx.shadowBlur = 20  // 设置阴影
    // ctx.shadowColor = 'rgba(0,0,0,1)'
    // ctx.shadowOffsetX = 10
    // ctx.shadowOffsetY = 10
    // ctx.fillText('Hello First!', 100, 100)  // 绘制实心文本
    // ctx.strokeText('Hello Sencond!', 100, 200)  // 绘制空心文本

    // // 绘制图像 (图片对象， x, y, width, height)
    // // 裁剪绘制图像 (图片对象， 裁剪的x, 裁剪的y, 裁剪的width, 裁剪的height, x, y, width, height)
    // var img = new Image()
    // img.src = 'https://blog.cdn.ionluo.cn/wallpaper/1583472341555.jpg'
    // img.onload = function(){
    //     ctx.drawImage(img, 50, 50, 600, 600)
    // }

    // // 图像数据处理(通过此方法，可以用来做图像识别等功能)
    // var img = new Image()
    // img.src = './1.jpg'
    // img.onload = function(){
    //     // 这里我没有图片，假设是一张
    //     ctx.drawImage(img, 0, 0)
    //     // getImageData(x,y,width,height)
    //     const imgData1 = ctx.getImageData(0,0,5,5)
    //     console.log(imgData1)
    //     const imgData2=ctx.createImageData(100,100)
    //     for (let i=0;i<imgData2.data.length;i+=4) {
    //         imgData2.data[i]=255; // 对应r
    //         imgData2.data[i+1]=0; // 对应g
    //         imgData2.data[i+2]=0; // 对应b
    //         imgData2.data[i+3]=255; // 对应a
    //     }
    //     ctx.putImageData(imgData2,10,10);
    // }

    // // 移动
    // ctx.translate(50, 0)  // 坐标的移动
    // ctx.fillRect(50, 50, 50, 50)


    // // 旋转
    // ctx.rotate(Math.PI/4)  // 旋转45deg，以坐标原点进行旋转
    // ctx.fillRect(0, 0, 50, 50)

    // // 缩放
    // ctx.scale(2, 2)
    // ctx.fillRect(50, 0, 50, 50)


    // // 设置绘制新形状时应用的合成操作类型
    // // https://developer.mozilla.org/en-US/docs/Web/API/CanvasRenderingContext2D/globalCompositeOperation
    // ctx.fillStyle = 'hotpink'
    // ctx.fillRect(100, 100, 200, 200)
    // // 源图像： 您打算放置到画布上的绘图     目标图像： 您已经放置在画布上的绘图
    // // ctx.globalCompositeOperation='source-over'  // 默认值, 在目标图像上显示源图像
    // // ctx.globalCompositeOperation='source-atop' // 在目标图像顶部显示源图像，源图像位于目标图像之外的部分不可见（即显示目标图像+相交部分的源图像）
    // // ctx.globalCompositeOperation='source-in' // 在目标图像中显示源图像，只有目标图像之内的源图像部分会显示，目标图像透明（即显示相交部分的源图像）
    // // ctx.globalCompositeOperation='source-out' // 在目标图像之外显示源图像，只有目标图像之外的源图像部分会显示，目标图像透明（即显示非相交部分的源图像）

    // // ctx.globalCompositeOperation='destination-over' // 在源图像上显示目标图像
    // // ctx.globalCompositeOperation='destination-atop' // 在源图像顶部显示目标图像，目标图像位于源图像之外的部分不可见（即显示源图像+相交部分的目标图像）
    // // ctx.globalCompositeOperation='destination-in' // 在源图像中显示目标图像，只有源图像之内的目标图像部分会显示，源图像透明（即显示相交部分的目标图像）
    // // ctx.globalCompositeOperation='destination-out' // 在源图像之外显示目标图像，只有源图像之外的目标图像部分会显示，源图像透明（即显示非相交部分的目标图像）


    // // ctx.globalCompositeOperation='lighter' // 显示源图像+目标图像-相交部分
    // // ctx.globalCompositeOperation='copy' // 显示源图像，忽略目标图像
    // // ctx.globalCompositeOperation='xor' // 使用异或操作对源图像与目标图像进行组合（效果等同于lighter）
    // ctx.fillStyle = 'deepskyblue'
    // ctx.fillRect(200,200,200,200)

    // // 画笔
    // ctx.save()  // 保存当前画笔的状态（多次save的话，需要恢复到上几次就下面restore几次）
    // ctx.restore()  // 恢复之前保留的画笔状态
</script>
</body>
</html>

详细用法

https://developer.mozilla.org/zh-CN/docs/Web/API/Canvas_API/Tutorial

注意事项

应用

1. 视频播放

ps: 通过该方法播放视频也可以增加各式各样的字幕

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
<!doctype html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport"
          content="width=device-width, user-scalable=no, initial-scale=1.0, maximum-scale=1.0, minimum-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>Document</title>
</head>
<body>
    <canvas id="canvas" width="800" height="500"></canvas>
    <video width="800" autoplay src="https://blog.cdn.ionluo.cn/video/%E4%B8%80%E7%A6%85%E5%B0%8F%E5%92%8C%E5%B0%9A.mp4" controls></video>

    <script>
        var video = document.querySelector('video')
        var canvas = document.querySelector('canvas')

        var interId
        var ctx = canvas.getContext('2d')
        video.onplay = function () {
            interId = setInterval(() => {
                ctx.clearRect(0, 0, 800, 500)
                // 上下黑色
                ctx.fillStyle='#000'
                ctx.fillRect(0, 0, 800, 500)
                ctx.drawImage(video, 0, 25, 800, 450)
                // 字幕(可自行添加滚动逻辑)
                ctx.font = '10px Arail'
                ctx.fillStyle = '#fff'
                ctx.fillText('ionluo', 10, 15)
                // 可以通过ctx.getImageData(x, y, width, height)来进行canvas图像取色
                // 通过ctx.putImageData() 把图像对象修改后放到画布上
            }, 16)
            // 16ms符合普通屏幕的60HZ刷新率，即1/60*1000
        }
        video.onpause = function () {
            clearInterval(interId)
        }
    </script>
</body>
</html>

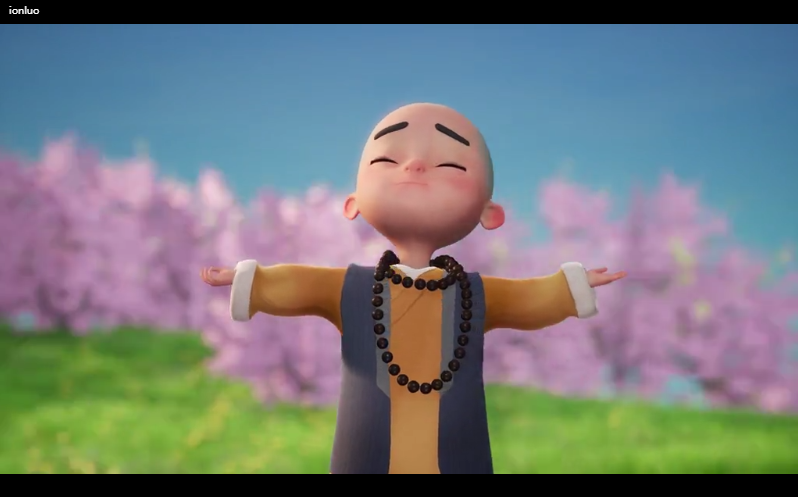

image-20210618222321634

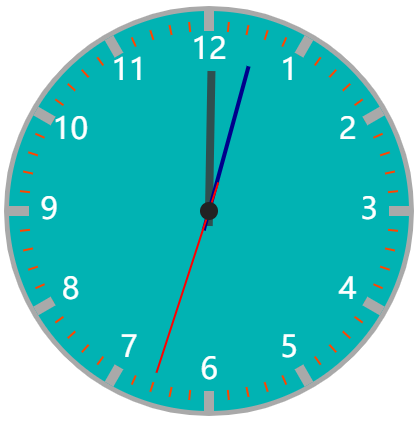

2. 时钟

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
<!doctype html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport"
          content="width=device-width, user-scalable=no, initial-scale=1.0, maximum-scale=1.0, minimum-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>Document</title>
</head>
<body>
    <canvas id="canvas" width="800" height="800"></canvas>

    <script>
        var canvas = document.getElementById('canvas')
        var ctx = canvas.getContext('2d')


        function renderCloak() {
            ctx.clearRect(0,0,800,800)
            // ctx.save()
            // // 将坐标移动到时钟的圆心,坐标向上旋转90度
            // ctx.translate(400, 300)
            // ctx.rotate(-2*Math.PI/4)  // 方便时针的旋转


            // 绘制表盘
            ctx.save()
            ctx.beginPath()
            ctx.translate(400, 300)
            ctx.arc(0, 0, 200, 0, 2*Math.PI)
            ctx.strokeStyle = 'darkgrey'
            ctx.lineWidth = 10
            ctx.stroke()
            ctx.fillStyle = '#01b3b3'
            ctx.fill()
            ctx.closePath()
            ctx.restore()


            // 绘制六十刻度
            for(let i = 0; i < 60; i++){
                ctx.save()
                ctx.beginPath()
                ctx.translate(400, 300)
                ctx.rotate(2*Math.PI/60*i)
                ctx.moveTo(180, 0)
                ctx.lineTo(190, 0)
                ctx.lineWidth= 2
                ctx.strokeStyle = 'orangered'
                ctx.stroke()
                ctx.closePath()
                ctx.restore()
            }


            // 绘制十二刻度
            for(let i = 0; i < 12; i++){
                ctx.save()
                ctx.beginPath()
                ctx.translate(400, 300)
                ctx.rotate(2*Math.PI/12*i)
                ctx.moveTo(180, 0)
                ctx.lineTo(200, 0)
                ctx.lineWidth= 10
                ctx.strokeStyle = 'darkgrey'
                ctx.stroke()
                ctx.closePath()
                ctx.restore()
            }


            // 绘制十二刻度数字(数字倾斜版本，不太好看)
            // for(let i = 1; i <= 12; i++){
            //     ctx.save()
            //     ctx.beginPath()
            //     ctx.translate(400, 300)
            //     ctx.rotate(-2*Math.PI/4)  // 坐标轴应该从12点开始
            //     ctx.rotate(2*Math.PI/12*i)
            //     ctx.font="30px 微软雅黑"
            //     ctx.fillStyle = '#fff'
            //     ctx.fillText(i, i<10?150:140, 12)
            //     ctx.closePath()
            //     ctx.restore()
            // }

            // 绘制十二刻度数字
            for(let i = 0; i < 12; i++){
                ctx.save()
                ctx.beginPath()
                ctx.translate(400, 300)
                ctx.font="30px 微软雅黑"
                ctx.fillStyle = '#fff'
                ctx.textAlign = "center";
                ctx.textBaseline = "middle";
                // 现在坐标起点是3点钟开始，所以应该让第一个数字是3
                ctx.fillText((i+3)%12===0?12:(i+3)%12, Math.cos(2*Math.PI/12*i)*160, Math.sin(2*Math.PI/12*i)*160)
                ctx.closePath()
                ctx.restore()
            }


            const time = new Date()
            let hour = time.getHours()
            hour = hour%12
            let min = time.getMinutes()
            let sec = time.getSeconds()
            // console.log(hour, min, sec)


            // 绘制时针
            ctx.save()
            ctx.beginPath()
            ctx.translate(400, 300)
            ctx.rotate(-2*Math.PI/4)  // 坐标轴应该从12点开始
            ctx.rotate(2*Math.PI/12*hour+2*Math.PI/60/12*min) // 这里的秒造成的角度偏差极小，忽略
            ctx.moveTo(-15, 0)
            ctx.lineTo(140, 0)
            ctx.lineWidth = 8
            ctx.strokeStyle = 'darkslategray'
            ctx.stroke()
            ctx.closePath()
            ctx.restore()


            // 绘制分针
            ctx.save()
            ctx.beginPath()
            ctx.translate(400, 300)
            ctx.rotate(-2*Math.PI/4)  // 坐标轴应该从12点开始
            ctx.rotate(2*Math.PI/60*min+2*Math.PI/3600*sec)
            ctx.moveTo(-20, 0)
            ctx.lineTo(150, 0)
            ctx.lineWidth = 4
            ctx.strokeStyle = 'darkblue'
            ctx.stroke()
            ctx.closePath()
            ctx.restore()


            // 绘制秒针
            ctx.save()
            ctx.beginPath()
            ctx.translate(400, 300)
            ctx.rotate(-2*Math.PI/4)  // 坐标轴应该从12点开始
            ctx.rotate(2*Math.PI/60*sec)
            ctx.moveTo(-30, 0)
            ctx.lineTo(170, 0)
            ctx.lineWidth = 2
            ctx.strokeStyle = 'red'
            ctx.stroke()
            ctx.closePath()
            ctx.restore()


            // 绘制原点
            ctx.save()
            ctx.beginPath()
            ctx.translate(400, 300)
            ctx.arc(0,0,9,0,2*Math.PI)
            ctx.fillStyle = '#222'
            ctx.fill()
            ctx.closePath()
            ctx.restore()
        }
        setInterval(renderCloak, 1000)
    </script>
</body>
</html>

image-20210619000256108

PS：上面是有刻度版本，记录一个无刻度版本，较为简洁

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
<!DOCTYPE html>
<html>
  <head>
    <meta charset="UTF-8" />
    <title>Canvas Clock</title>
    <style>
      #clockCanvas {
        display: block;
        margin: 0 auto;
        background-color: #fff;
        border: 1px solid #ccc;
        border-radius: 50%;
        box-shadow: 0 0 10px rgba(0, 0, 0, 0.5);
      }
    </style>
  </head>
  <body>
    <canvas id="clockCanvas" width="400" height="400"></canvas>
    <script>
      const canvas = document.getElementById('clockCanvas');
      const ctx = canvas.getContext('2d');
      const radius = canvas.height / 2;
      ctx.translate(radius, radius);
      const clockRadius = radius * 0.9;

      function drawClock() {
        drawFace(ctx, clockRadius);
        drawNumbers(ctx, clockRadius);
        drawTime(ctx, clockRadius);
      }

      function drawFace(ctx, radius) {
        ctx.beginPath();
        ctx.arc(0, 0, radius, 0, 2 * Math.PI);
        ctx.fillStyle = 'white';
        ctx.fill();

        ctx.strokeStyle = '#333';
        ctx.lineWidth = radius * 0.1;
        ctx.stroke();

        ctx.beginPath();
        ctx.arc(0, 0, radius * 0.1, 0, 2 * Math.PI);
        ctx.fillStyle = '#333';
        ctx.fill();
      }

      function drawNumbers(ctx, radius) {
        let ang;
        let num;
        ctx.font = radius * 0.15 + 'px arial';
        ctx.textBaseline = 'middle';
        ctx.textAlign = 'center';
        for (num = 1; num <= 12; num++) {
          ang = (num * Math.PI) / 6;
          ctx.rotate(ang);
          ctx.translate(0, -radius * 0.85);
          ctx.rotate(-ang);
          ctx.fillText(num.toString(), 0, 0);
          ctx.rotate(ang);
          ctx.translate(0, radius * 0.85);
          ctx.rotate(-ang);
        }
      }

      function drawTime(ctx, radius) {
        const now = new Date();
        const hour = now.getHours();
        const minute = now.getMinutes();
        const second = now.getSeconds();

        // Hour
        const hourPos = ((hour % 12) * Math.PI) / 6 + (minute * Math.PI) / 360;
        drawHand(ctx, hourPos, radius * 0.5, radius * 0.07);

        // Minute
        const minutePos = (minute * Math.PI) / 30 + (second * Math.PI) / 1800;
        drawHand(ctx, minutePos, radius * 0.8, radius * 0.07);

        // Second
        const secondPos = (second * Math.PI) / 30;
        drawHand(ctx, secondPos, radius * 0.9, radius * 0.02);
      }

      function drawHand(ctx, pos, length, width) {
        ctx.beginPath();
        ctx.lineWidth = width;
        ctx.lineCap = 'round';
        ctx.moveTo(0, 0);
        ctx.rotate(pos);
        ctx.lineTo(0, -length);
        ctx.stroke();
        ctx.rotate(-pos);
      }

      function updateClock() {
        ctx.clearRect(-radius, -radius, canvas.width, canvas.height);
        drawClock();
      }

      setInterval(updateClock, 1000);
      drawClock();
    </script>
  </body>
</html>

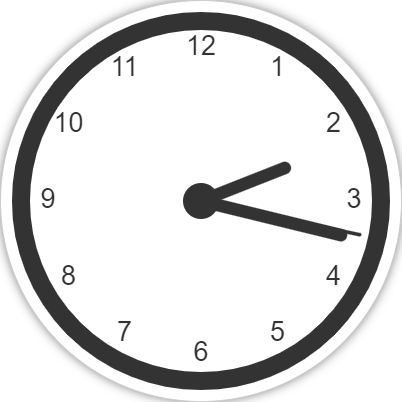

image-20241030141724626

3. 刮刮卡

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8" />
		<title></title>
        <style>
            #ggk {
                width: 400px;
                height: 100px;
                position: relative;
                cursor: pointer;
            }

            #ggk .xxhg {
                position: absolute;
                left: 0;
                top: 0;
                right: 0;
                bottom: 0;
                text-align: center;
                font-size: 30px;
                line-height: 100px;
                color: hotpink;
                user-select: none;
            }

            #ggk #canvas {
                position: absolute;
                left: 0;
                top: 0;
                right: 0;
                bottom: 0;
            }
        </style>
	</head>
	<body>
        <div id="ggk">
            <div class="xxhg">谢谢惠顾！</div>
            <canvas id="canvas" width="400" height="100"></canvas>
        </div>


        <script>
            var ggkDom = document.getElementById('ggk')
            var canvas = document.getElementById('canvas')
            var ctx = canvas.getContext('2d')

            ctx.fillStyle = 'darkgray'
            ctx.fillRect(0, 0, 400, 100)

            ctx.font = '20px 微软雅黑'
            ctx.fillStyle = '#fff'
            ctx.fillText('刮刮卡', 180, 40)

            var isDraw = false
            canvas.onmousedown = function(){
                isDraw = true
            }

            canvas.onmousemove = function(e){
                if (isDraw){
                    e = e || window.event;
                    var x = e.clientX - ggkDom.offsetLeft
                    var y = e.clientY - ggkDom.offsetTop
                    ctx.globalCompositeOperation='destination-out'
                    ctx.arc(x, y, 20, 0, 2*Math.PI)
                    ctx.fill()
                }
            }

            canvas.onmouseup = function(){
                isDraw = false
            }

            // // 设置绘制新形状时应用的合成操作类型
            // // https://developer.mozilla.org/en-US/docs/Web/API/CanvasRenderingContext2D/globalCompositeOperation
            // ctx.fillStyle = 'hotpink'
            // ctx.fillRect(100, 100, 200, 200)
            // // 源图像： 您打算放置到画布上的绘图     目标图像： 您已经放置在画布上的绘图
            // // ctx.globalCompositeOperation='source-over'  // 默认值, 在目标图像上显示源图像
            // // ctx.globalCompositeOperation='source-atop' // 在目标图像顶部显示源图像，源图像位于目标图像之外的部分不可见（即显示目标图像+相交部分的源图像）
            // // ctx.globalCompositeOperation='source-in' // 在目标图像中显示源图像，只有目标图像之内的源图像部分会显示，目标图像透明（即显示相交部分的源图像）
            // // ctx.globalCompositeOperation='source-out' // 在目标图像之外显示源图像，只有目标图像之外的源图像部分会显示，目标图像透明（即显示非相交部分的源图像）

            // // ctx.globalCompositeOperation='destination-over' // 在源图像上显示目标图像
            // // ctx.globalCompositeOperation='destination-atop' // 在源图像顶部显示目标图像，目标图像位于源图像之外的部分不可见（即显示源图像+相交部分的目标图像）
            // // ctx.globalCompositeOperation='destination-in' // 在源图像中显示目标图像，只有源图像之内的目标图像部分会显示，源图像透明（即显示相交部分的目标图像）
            // // ctx.globalCompositeOperation='destination-out' // 在源图像之外显示目标图像，只有源图像之外的目标图像部分会显示，源图像透明（即显示非相交部分的目标图像）


            // // ctx.globalCompositeOperation='lighter' // 显示源图像+目标图像-相交部分
            // // ctx.globalCompositeOperation='copy' // 显示源图像，忽略目标图像
            // // ctx.globalCompositeOperation='xor' // 使用异或操作对源图像与目标图像进行组合（效果等同于lighter）
            // ctx.fillStyle = 'deepskyblue'
            // ctx.fillRect(200,200,200,200)
        </script>
	</body>
</html>

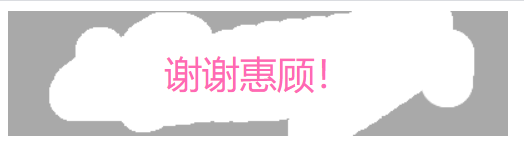

image-20210619110221246

4. 画板

以前的关于这个的文章：https://blog.csdn.net/ion_L/article/details/83020855

这里对原来的一些问题做下优化

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8" />
		<title></title>
        <style>
            * {
                margin: 0;
                padding: 0;
                box-sizing: border-box;
            }
            html, body {
                width: 100vw;
                height: 100vh;
            }


        </style>
	</head>
	<body>
        <!--
        个人觉得比较好的一些在线画板：
        https://sumo.app/paint/en
        https://www.suxieban.com/#
        画布功能：撤销，保存，清空
        画笔功能：能够拖动鼠标在页面内绘图，能够设置画笔的粗细，能够设置画笔的颜色
        橡皮擦功能
        能够在任意位置绘制折线，并且可以定制长度
        能够在任意位置绘制圆形，并且可以定制大小
        能够在任意位置绘制矩形，并且可以定制大小
        能够在任意位置插入文字，并且可以定制大小
        能够在任意位置插入图片，并且可以定制大小
        -->
        <div class="menu">
            <div class="btn">画笔</div>
            <div class="btn">橡皮擦</div>
            <div class="btn">矩形</div>
            <div class="btn">圆形</div>
        </div>
        <canvas id="canvas"></canvas>


        <script>
            var canvas = document.getElementById('canvas')
            var ctx = canvas.getContext('2d')

        </script>
	</body>
</html>

5.随机验证码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8" />
		<title></title>
	</head>
	<body>
        <script>
            function generatorCapture(w, h){
                // w: 验证码图片的宽度
                // h: 验证码图片的高度
                // 返回正确的验证码字符串

                // 随机数的生成函数
                function rn(min, max){
                    return parseInt(Math.random()*(max-min)+min)
                }

                // 随机颜色的生成函数
                function rc(min, max){
                    var r = rn(min, max)
                    var g = rn(min, max)
                    var b = rn(min, max)
                    return `rgb(${r}, ${g}, ${b})`
                }

                // var canvas = document.getElementById('canvas')
                var canvas = document.createElement('canvas')
                canvas.width = w
                canvas.height = h
                var ctx = canvas.getContext('2d')
                // ctx.fillStyle = rc(0, 256)  // 这里尽量采用浅色，字体用深色
                ctx.fillStyle = rc(180, 230)
                ctx.fillRect(0, 0, w, h)

                // 随机字符串
                var pool = 'ABCDEFGHIGKLMNOPQRSTUVWSYZ1234567890'
                // 验证码
                var result = ''

                for(let i = 0; i < 4; i++){
                    // 取出随机的字母或者数字
                    var c = pool[rn(0,pool.length)]
                    result += c
                    // 随机字体大小
                    var fs = rn(18,40)
                    // 随机旋转角度
                    var deg = rn(-30,30)

                    ctx.font = fs + 'px Simhei'
                    ctx.textBaseline = 'top'
                    ctx.fillStyle = rc(80, 150)
                    ctx.save()
                    ctx.translate(w/4*i+15, 15)
                    ctx.rotate(deg*Math.PI/180)
                    ctx.fillText(c, -10, -10)
                    ctx.restore()
                }


                // 随机生成干扰线
                for(let i = 0; i < 5; i++){
                    ctx.beginPath()
                    ctx.moveTo(rn(0, w), rn(0, h))
                    ctx.lineTo(rn(0, w), rn(0, h))
                    ctx.closePath()
                    ctx.strokeStyle = rc(180, 230)
                    ctx.stroke()
                }


                // 随机生成干扰圆点
                for(let i = 0; i < 40; i++){
                    ctx.beginPath()
                    ctx.arc(rn(0, w), rn(0, h), 1, 0, 2*Math.PI)
                    ctx.closePath()
                    ctx.fillStyle = rc(150, 230)
                    ctx.fill()
                }

                // document.body.appendChild(canvas)

                return {
                    imgUrl: canvas.toDataURL(),
                    imgValue: result
                }
            }

            var capture = generatorCapture(120, 40);
            var img = document.createElement('img')
            img.src = capture.imgUrl
            document.body.appendChild(img)
        </script>
	</body>
</html>

image-20210619160836742

6. 图片压缩

这里只是一个demo，实际生产环境中不建议使用canvas这种全损压缩方案，其存在压缩可能不减反增情况。生产环境最好还是通过买 tinyPNG 的服务进行后端压缩。(可见：https://segmentfault.com/a/1190000023486410)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
<html>
  <head>
      <style>
          .flex-box { display: flex; justify-content: space-around; }
      </style>
  </head>
    <div class="container">
        <div class="flex-box">
            <div class="left">
                <input type="file" id="upload">
                <p><small>注意：仅接受不超过3M的jpg, jpeg, png图片</small></p>
            </div>
            <div class="right">
                <strong>设置参数</strong>
                <p>
                    mine类型： <select id="mime">
                         <option value="">auto</option>
                         <option value="image/jpg">image/jpg</option>
                         <option value="image/jpeg">image/jpeg</option>
                         <option value="image/png">image/png</option>
                    </select>
                </p>
                <p>
                    压缩率：<input id="quality" type="number" value="100" style="width: 50px;" min="0" max="100">
                </p>
            </div>
        </div>
    </div>
    <script>
      const ACCEPT_TYPE = ['image/jpg', 'image/jpeg', 'image/png']; // 限定图片文件类型
      const MAX_SIZE = 1024 * 1024 * 3; // 限定图片最大容量
      const MAXSIZE_STR = '3MB';
      const [MAX_WIDTH, MAX_HEIGHT] = [1024, 1024];

      const uploadNode = document.getElementById('upload')
      const mimeNode = document.getElementById('mime')
      const qualityNode = document.getElementById('quality')
      // uploadNode.accept = ACCEPT_TYPE.join(',')

      uploadNode.addEventListener('change', function(e) {
        const file = e.target.files[0];
        if (!file) return;

         // 重置文件选择
        uploadNode.value = '';
        // 图片类型检查
        if (!ACCEPT_TYPE.includes(file.type)) return alert('不支持上传该格式文件！');
        // 图片大小检查
        if (file.size > MAX_SIZE) return alert('文件不能超出3M！');
        // 压缩文件
        convertImageToBase64(file).then(base64Image => {
            console.log('原始图片信息', file);
            const quality = qualityNode.value || '100';
            const mimeType = mimeNode.value || file.type;
            return compress(base64Image, quality, mimeType);
        }).then(base64Image => {
            const compressFile = dataUrlToBlob(base64Image);
            console.log('压缩图片信息', compressFile);
            // uploadFile('https://xxx/upload', compressFile);
        });
      });

      // 将图片转成base64
      function convertImageToBase64(file) {
        return new Promise((resolve, reject) => {
            let reader = new FileReader();
            reader.addEventListener('load', function(e) {
              const base64Image = e.target.result;
              resolve(base64Image);
              reader = null;
            });
            setTimeout(() => {
               reject('timeout!')
            }, 30 * 1000)
            reader.readAsDataURL(file);
        })
      }

      // 压缩图片
      function compress(base64, quality, mimeType) {
        let canvas = document.createElement("canvas");
        let img = document.createElement("img");
        return new Promise((resolve, reject) => {
          img.src = base64;
          img.onload = () => {
            let targetWidth, targetHeight;
            if (img.width > MAX_WIDTH) {
              canvas.width = MAX_WIDTH;
              canvas.height = (img.height * MAX_WIDTH) / img.width;
            } else if (img.height > MAX_HEIGHT) {
              canvas.height = MAX_HEIGHT;
              canvas.width = (img.width * MAX_HEIGHT) / img.height;
            } else {
              canvas.width = img.width;
              canvas.height = img.height;
            }
            let ctx = canvas.getContext("2d");
            ctx.clearRect(0, 0, targetWidth, targetHeight); // 清除画布
            ctx.drawImage(img, 0, 0, canvas.width, canvas.height);
            let imageData = canvas.toDataURL(mimeType, quality / 100);
            resolve(imageData);
          };
        });
      }

      // base64 转 blob
      function dataUrlToBlob(base64, mimeType) {
        mimeType = mimeType || base64.split(",")[0].match(/data:(.+);base64/)[1];
        let bytes = window.atob(base64.split(",")[1]);
        let ab = new ArrayBuffer(bytes.length);
        let ia = new Uint8Array(ab);
        for (let i = 0; i < bytes.length; i++) {
          ia[i] = bytes.charCodeAt(i);
        }
        return new Blob([ab], { type: mimeType });
      }

      // 上传图片
      function uploadFile(url, blob) {
        let formData = new FormData();
        let request = new XMLHttpRequest();
        formData.append("image", blob);
        request.open("POST", url, true);
        request.send(formData);
      }
    </script>
  </body>
</html>

图片压缩也存在第三方库 compressorjs，更多图片处理推荐看看阿宝哥的 图片处理不用愁，给你十个小帮手

7. canvas生成自定义图片

通常用于自动生成用户头像，如钉钉注册后默认的头像

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

export default function getImgUrl (img) {
  const canvas = document.createElement('canvas')
  const ctx = canvas.getContext('2d')

  img = img || {}
  canvas.width = img.width || 50
  canvas.height = img.height || 50

  ctx.rect(0, 0, canvas.width, canvas.height)
  ctx.fillStyle = img.backgroundColor || '#fff'
  ctx.fill()

  if (img.text) {
    ctx.font = img.textFont || '50px 微软雅黑'
    ctx.textAlign = 'center'
    ctx.textBaseline = 'middle'
    ctx.fillStyle = img.textColor || '#444'

    var textWidth = ctx.measureText(img.text).width
    var scaled = 1
    if (textWidth > canvas.width) {
      scaled = canvas.width / textWidth * 0.8 // 不要占满
      ctx.scale(scaled, scaled)
    }
    // ctx.fillText(img.text, 0, 0, canvas.width)
    ctx.fillText(img.text, canvas.width / 2 / scaled, canvas.height / 2 / scaled)
  }
  //   document.body.appendChild(canvas)
  return canvas.toDataURL()
}

8. 粒子碰撞

9. canvas特效或游戏开发

下面的代码来自TechbrooD.com， 领先的沉浸式互联网内容门户，一站式学习、创作和展示。

HTML5 Canvas五彩纸屑粒子动画特效

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
        <style>
            * {
                margin: 0;
                padding: 0;
                box-sizing: border-box;
            }
            body {
                width: 100vw;
                min-height: 100vh;
            }
            #canvas {
                display: block;
                cursor: pointer;
            }
        </style>
	</head>
	<body>
        <canvas id="mycanvas"></canvas>

        <script>
            const getRandom = (min, max) => {
              return Math.random() * (max - min) + min
            }

            const getRandomInt = (min, max) => {
              return Math.floor(Math.random() * (max - min)) + min
            }

            const getRandomColor = () => {
              const colors = [
                'rgba(231, 76, 60, 1)', // red
                'rgba(241, 196, 15, 1)', // yellow
                'rgba(46, 204, 113, 1)', // green
                'rgba(52, 152, 219, 1)', // blue
                'rgba(155, 89, 182, 1)' // purple
              ]

              return colors[getRandomInt(0, colors.length)]
            }

            // Particle

            class Particle {

              constructor (system, x, y) {
                this.system = system
                this.universe = this.system.world.universe
                this.x = x
                this.y = y
                this.color = getRandomColor()
                this.life = 1
                this.aging = getRandom(0.99, 0.999) // 0.99, 0.999 || 0.999, 0.9999

                this.r = getRandomInt(8, 16)
                this.speed = getRandom(3, 8)
                this.velocity = [
                  getRandom(-this.speed, this.speed),
                  getRandom(-this.speed, this.speed)
                ]
              }

              update (dt) {
                this.life *= this.aging

                if (
                  this.r < 0.1
                  || this.life === 0
                  || this.x + this.r < 0
                  || this.x - this.r > this.universe.width
                  || this.y + this.r < 0
                  || this.y - this.r > this.universe.height
                ) {
                  this.system.removeObject(this)
                }

                this.r *= this.life
                this.x += this.velocity[0]
                this.y += this.velocity[1]
              }

              render (ctx) {
                // Main circle

                ctx.fillStyle = this.color
                ctx.beginPath()
                ctx.arc(this.x, this.y, this.r, 0, 2 * Math.PI, false);
                ctx.fill()
                ctx.closePath()

                const r = this.color.match(/([0-9]+)/g)[0]
                const g = this.color.match(/([0-9]+)/g)[1]
                const b = this.color.match(/([0-9]+)/g)[2]

                // Gradient

                const spread = 1.5
                const gradient = ctx.createRadialGradient(
                  this.x, this.y, this.r,
                  this.x, this.y, this.r * spread
                );
                gradient.addColorStop(0, `rgba(${r}, ${g}, ${b}, 0.3)`);
                gradient.addColorStop(1, `rgba(${r}, ${g}, ${b}, 0)`);

                ctx.globalCompositeOperation = 'lighter'
                ctx.fillStyle = gradient
                ctx.beginPath()
                ctx.arc(this.x, this.y, this.r * spread, 0, 2 * Math.PI, false)
                ctx.fill()
                ctx.closePath()
                ctx.globalCompositeOperation = 'source-over'

                // Aberration

                const offset = this.r * 0.5
                const color = `rgba(${g}, ${b}, ${r}, 0.3)`

                ctx.globalCompositeOperation = 'lighter'
                ctx.fillStyle = color
                ctx.beginPath()
                ctx.arc(this.x + offset, this.y + offset, this.r, 0, 2 * Math.PI, false)
                ctx.fill()
                ctx.closePath()
                ctx.globalCompositeOperation = 'source-over'
              }

            }

            // Crown

            class Crown {

              constructor (system, x, y) {
                this.system = system
                this.x = x
                this.y = y
                this.r = getRandomInt(15, 20) // 5, 20
                this.mod = 1.1
                this.life = 1
                this.aging = getRandom(0.83, 0.88)
                this.speed = getRandom(4, 5)

                this.color = {
                  r: getRandomInt(236, 242),
                  g: getRandomInt(196, 241),
                  b: getRandomInt(195, 242)
                }

                this.angle1 = Math.PI * getRandom(0, 2)
                this.angle2 = this.angle1 + Math.PI * getRandom(0.1, 0.5)
              }

              update (dt) {
                this.life *= this.aging

                if (this.life <= 0.0001) this.system.removeObject(this)

                this.r += Math.abs(1 - this.life) * this.speed

                this.x1 = this.x + this.r * Math.cos(this.angle1)
                this.y1 = this.y + this.r * Math.sin(this.angle1)

                this.angle3 = this.angle1 + ((this.angle2 - this.angle1) / 2)
                this.x2 = this.x + this.r * this.mod * Math.cos(this.angle3)
                this.y2 = this.y + this.r * this.mod * Math.sin(this.angle3)
              }

              render (ctx) {
                const gradient = ctx.createRadialGradient(
                  this.x, this.y, this.r * 0.9,
                  this.x, this.y, this.r
                );
                gradient.addColorStop(0, `rgba(${this.color.r}, ${this.color.g}, ${this.color.b}, ${this.life})`);
                gradient.addColorStop(1, `rgba(${this.color.r}, ${this.color.g}, ${this.color.b}, ${this.life * 0.5})`);

                ctx.fillStyle = gradient
                ctx.beginPath()
                ctx.arc(this.x, this.y, this.r, this.angle1, this.angle2, false)
                ctx.quadraticCurveTo(this.x2, this.y2, this.x1, this.y1)
                ctx.fill()
                ctx.closePath()
              }

            }

            // Explosion

            class Explosion {

              constructor (world, x, y) {
                this.world = world
                this.x = x
                this.y = y
                this.objects = []

                let particles = getRandomInt(30, 80) // 10, 30 amount of particles
                let crowns = particles * getRandom(0.3, 0.5)

                while (crowns-- > 0) this.addCrown()
                while (particles-- > 0) this.addParticle()
              }

              update (dt) {
                this.objects.forEach((obj) => {
                  if (obj) obj.update(dt)
                })

                if (this.objects.length <= 0) {
                  this.world.clearExplosion(this)
                }
              }

              render (ctx) {
                this.objects.forEach((obj) => {
                  if (obj) obj.render(ctx)
                })
              }

              addCrown () {
                this.objects.push(new Crown(this, this.x, this.y))
              }

              addParticle () {
                this.objects.push(new Particle(this, this.x, this.y))
              }

              removeObject (obj) {
                const index = this.objects.indexOf(obj)

                if (index !== -1) {
                  this.objects.splice(index, 1)
                }
              }

            }

            // World

            class ConfettiWorld {

              init () {
                this.objects = []
                window.addEventListener('click', this.explode.bind(this))

                // Initial explosion
                let counter = 3
                while (counter-- > 0) {
                  this.explode({
                    clientX: this.universe.width / 2,
                    clientY: this.universe.height / 2
                  })
                }
              }

              update (dt) {
                this.objects.forEach((obj) => {
                  if (obj) obj.update(dt)
                })

                const amount = this.objects.reduce((sum, explosion) => {
                  return sum += explosion.objects.length
                }, 0)
              }

              render (ctx) {
                this.objects.forEach((obj) => {
                  if (obj) obj.render(ctx)
                })
              }

              explode (event) {
                const x = event.clientX
                const y = event.clientY

                this.objects.push(new Explosion(this, x, y))
              }

              clearExplosion (explosion) {
                const index = this.objects.indexOf(explosion)

                if (index !== -1) {
                  this.objects.splice(index, 1)
                }
              }

            }

            // Time

            class Time {

              constructor () {
                this.now = 0 // current tick time
                this.prev = 0 // prev tick time
                this.elapsed = 0 // elapsed time from last tick
                this.delta = 0 // time from last update
                this.fps = 60 // desired fps
                this.step = 1 / 60 // step duration
              }

              update (time) {
                this.now = time
                this.elapsed = (this.now - this.prev) / 1000
                this.prev = this.now
                this.delta += this.elapsed
              }

              raf (func) {
                window.requestAnimationFrame(func)
              }

              hasFrames () {
                return this.delta >= this.step
              }

              processFrame () {
                this.delta -= this.step
              }

            }

            // Canvas

            class Universe {

              constructor (element) {
                this.el = element
                this.ctx = this.el.getContext('2d')
                this.pixelRatio = window.devicePixelRatio
                this.time = new Time

                this.worlds = {}
                this.world = null // current state

                this.updateSize()
                window.addEventListener('resize', this.updateSize.bind(this))

                this.addWorld('confetti', ConfettiWorld)
                this.setWorld('confetti')

                this.start()
              }

              start () {
                this.time.raf(this.tick.bind(this))
              }

              tick (time) {
                this.time.update(time)

                if (this.time.hasFrames()) {
                  this.update()
                  this.time.processFrame()
                }

                this.render()
                this.time.raf(this.tick.bind(this))
              }

              update () {
                this.world.update(this.time.step)
              }

              render () {
                const gradient = this.ctx.createLinearGradient(0, 0, this.width, this.height)
                gradient.addColorStop(0, '#34495e')
                gradient.addColorStop(1, '#2c3e50')

                this.ctx.clearRect(0, 0, this.width, this.height)
                // this.ctx.fillStyle = '#2c3e50'
                this.ctx.fillStyle = gradient
                this.ctx.fillRect(0, 0, this.width, this.height)
                this.world.render(this.ctx)
              }

              // Helpers

              updateSize () {
                this.width = window.innerWidth
                this.height = window.innerHeight
                this.el.width = this.width * this.pixelRatio
                this.el.height = this.height * this.pixelRatio
                this.el.style.width = window.innerWidth + 'px'
                this.el.style.height = window.innerHeight + 'px'
                this.ctx.scale(this.pixelRatio, this.pixelRatio)
              }

              addWorld (worldName, World) {
                this.worlds[worldName] = new World()
                this.worlds[worldName].universe = this
                this.worlds[worldName].init()
              }

              setWorld (worldName) {
                this.world = this.worlds[worldName]
              }

            }

            // Main

            console.clear()
            const element = document.querySelector('#mycanvas')
            window.Canvas = new Universe(element)
        </script>
	</body>
</html>

HTML5 Canvas可交互的粒子碰撞实验

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
        <style>
            html,
            body {
                margin: 0;
                overflow: hidden;
                cursor: pointer;
            }
            .note {
                position: absolute;
                color: rgba(249, 241, 204, .5);
                left: 0;
                right: 0;
                bottom: 20px;
                margin: auto;
                text-align: center;
                user-select: none;
                font-family: Arial;
            }
        </style>
	</head>
	<body>
        <canvas id="canvas"></canvas>
        <span class="note">Click to add particles</span>
        <script src="https://wow.techbrood.com//uploads/161101/dat.gui.min.js"></script>


        <script>
            // 性能不太好，会卡

            function getRandomInt(min, max, except) {
                var i = Math.floor(Math.random() * (max - min + 1)) + min;
                if (typeof except == "undefined") return i;
                else if (typeof except == "number" && i == except) return getRandomInt(min, max, except);
                else if (typeof except == "object" && (i >= except[0] && i <= except[1])) return getRandomInt(min, max, except);
                else return i;
            }

            function isEven(n) {
                return n == parseFloat(n) ? !(n % 2) : void 0;
            }

            function degToRad(deg) {
                return deg * (Math.PI / 180);
            }

            var colors = [];
            colors[0] = [];
            colors[0]["background"] = "black"; // "#272822";
            colors[0][1] = "#e6db74";
            colors[0][2] = "#f92672";
            colors[0][3] = "#53d2ef";
            colors[0][4] = "#fd8b20";
            colors[0][5] = "#a6e22e";

            function Person(id) {
                this.id = id;
                this.width = getRandomInt(5, 12);
                this.height = this.width;
                this.x = getRandomInt(0, (canvas.width - this.width));
                this.y = getRandomInt(0, (canvas.height - this.height));
                this.color = "white";
                this.direction = getRandomInt(0, 360);
                this.isHit = false;
                this.nextActionIndex = 0;
                this.job = 'unemployed';
                this.shadowBlur = getRandomInt(10, 50);
            }

            Person.prototype.checkIfPositionIsEmpty = function() {
                var initialPosition = [];
                initialPosition = this.readMatrix(this.x, this.y, this.width, this.height, this.id);
                if (initialPosition.length == 0 || typeof initialPosition[0] == 'undefined') {
                    this.writeMatrix(this.x, this.y, this.width, this.height, this.id);
                    return;
                } else {
                    this.x = getRandomInt(0, (canvas.width - this.width));
                    this.y = getRandomInt(0, (canvas.height - this.height));
                    this.checkIfPositionIsEmpty();
                }
            }

            Person.prototype.nextAction = function() {
                switch (this.nextActionIndex) {
                    case 0:
                        return this.walk();
                    case 1:
                        return this.stop();
                    default:
                        this.walk();
                }
            }

            Person.prototype.stop = function() {
                this.update();
            }

            Person.prototype.walk = function() {

                var next_x = this.x + Math.cos(degToRad(this.direction)) * params.speed,
                    next_y = this.y + Math.sin(degToRad(this.direction)) * params.speed;

                // Limites du canvas
                if (next_x >= (canvas.width - this.width) && (this.direction < 90 || this.direction > 270)) {
                    next_x = canvas.width - this.width;
                    this.direction = getRandomInt(90, 270, this.direction);
                }
                if (next_x <= 0 && (this.direction > 90 && this.direction < 270)) {
                    next_x = 0;
                    var exept = [90, 270];
                    this.direction = getRandomInt(0, 360, exept);
                }
                if (next_y >= (canvas.height - this.height) && (this.direction > 0 && this.direction < 180)) {
                    next_y = canvas.height - this.height;
                    this.direction = getRandomInt(180, 360, this.direction);
                }
                if (next_y <= 0 && (this.direction > 180 && this.direction < 360)) {
                    next_y = 0;
                    this.direction = getRandomInt(0, 180, this.direction);
                }

                var nextMatrixPosition = [];
                nextMatrixPosition = this.readMatrix(next_x, next_y, this.width, this.height, this.id);
                if (nextMatrixPosition.length == 0 || typeof nextMatrixPosition[0] == 'undefined') {
                    this.eraseMatrix(this.x, this.y, this.width, this.height);

                    this.x = next_x;
                    this.y = next_y;

                    // Enregistre la position dans la matrice
                    this.writeMatrix(this.x, this.y, this.width, this.height, this.id);

                    this.update();
                }

                // La place dans la matrice est déjà prise -> collision
                else {
                    var e = 0;
                    while (e <= nextMatrixPosition.length) {
                        if (typeof nextMatrixPosition[e] != 'undefined') this.hit(nextMatrixPosition[e]);
                        e++;
                    }

                    this.takeOppositeDirection();

                    this.update();
                }
            }


            Person.prototype.eraseMatrix = function(x, y, width, height) {
                var x = Math.floor(x),
                    y = Math.floor(y);
                var i = x;
                while (i < (x + width)) {
                    var u = y;
                    while (u < (y + height)) {
                        if (matrix[i][u] >= 0) {
                            delete matrix[i][u];
                        }
                        u++;
                    }
                    i++;
                }
            }


            Person.prototype.writeMatrix = function(x, y, width, height, id) {
                var x = Math.floor(x),
                    y = Math.floor(y);
                var i = x;
                while (i < (x + width)) {
                    var u = y;
                    while (u < (y + height)) {
                        matrix[i][u] = id;
                        u++;
                    }
                    i++;
                }
            }


            Person.prototype.readMatrix = function(x, y, width, height, id) {
                var results = [];
                var x = Math.floor(x),
                    y = Math.floor(y);
                var i = x;
                while (i < (x + width)) {
                    var u = y;
                    while (u < (y + height)) {
                        //console.log(i, u);
                        if (typeof matrix[i][u] != 'undefined' && matrix[i][u] != id) {
                            if (results.length > 0) {
                                for (var o in results) {
                                    if (matrix[i][u] != results[o]) results[results.length] = matrix[i][u];
                                }
                            } else results[results.length] = matrix[i][u];
                        }
                        u++;
                    }
                    i++;
                }
                return results;
            }


            Person.prototype.takeOppositeDirection = function() {
                if ((this.direction >= 0 && this.direction < 90) || (this.direction > 270 && this.direction <= 360)) {
                    this.direction = getRandomInt(90, 270);
                    return;
                }

                if (this.direction > 90 && this.direction < 270) {
                    var exept = [90, 270];
                    this.direction = getRandomInt(0, 360, exept);
                    return;
                }

                if (this.direction > 0 && this.direction < 180) {
                    this.direction = getRandomInt(180, 360);
                    return;
                }

                if (this.direction > 180) {
                    this.direction = getRandomInt(0, 180);
                }
            }


            Person.prototype.hit = function(objectId) {
                bursts[bursts.length] = new Burst(bursts.length, this.x, this.y);
                this.color = this.color == "white" ? colors[params.theme][getRandomInt(1, colors[params.theme].length - 1)] : "white";
                persons[objectId].color = persons[objectId].color == "white" ? colors[params.theme][getRandomInt(1, colors[params.theme].length - 1)] : "white";
                persons[objectId].direction = getRandomInt(0, 360, persons[objectId].direction);
            }


            Person.prototype.update = function() {
                context.beginPath();

                context.fillStyle = this.color;
                context.arc(this.x + (this.width / 2), this.y + (this.height / 2), this.width / 2, 0, 2 * Math.PI, false);
                context.shadowColor = this.color;
                context.shadowBlur = this.shadowBlur;
                context.shadowOffsetX = 0;
                context.shadowOffsetY = 0;
                context.fill();
            }



            var canvas = document.getElementById("canvas"),
                context = canvas.getContext("2d"),
                canvasWidth = document.documentElement.clientWidth,
                canvasHeight = document.documentElement.clientHeight;

            var persons = [],
                bursts = [],
                numberOfPerson = canvasWidth * canvasHeight <= 320000 ? 25 : 60,
                matrix = createMatrixArray(),
                worldIsPaused = false,
                carpentersCount = numberOfPerson / 10,
                soldiersCount = numberOfPerson / 10,
                priestsCount = numberOfPerson / 10
            params = {
                speed: 2,
                theme: 0
            };

            var gui;
            gui = new dat.GUI();
            gui.add(params, 'speed').min(0).max(5).step(1).name('Speed');
            gui.close();

            canvas.setAttribute("width", canvasWidth);
            canvas.setAttribute("height", canvasHeight);

            function createMatrixArray() {
                var matrix = [],
                    i = 0;
                while (i <= canvasWidth) {
                    matrix[i] = [];
                    i++;
                }
                return matrix;
            }

            function start() {
                instantiatePopulation();
                animate();

            }

            start();

            function instantiatePopulation() {
                var i = 0;
                while (i < numberOfPerson) {
                    persons[i] = new Person(i);
                    persons[i].checkIfPositionIsEmpty();
                    i++;
                }
            }

            function animate() {
                if (worldIsPaused) return;

                //context.clearRect(0, 0, canvas.width, canvas.height);

                context.fillStyle = colors[params.theme]["background"];
                context.fillRect(0, 0, canvas.width, canvas.height);

                persons_order = persons.slice(0);

                persons_order.sort(function(a, b) {
                    return a.y - b.y;
                });

                for (var i in persons_order) {
                    var u = persons_order[i].id;
                    persons[u].nextAction();
                }

                for (var i in bursts) {
                    bursts[i].draw();
                }

                requestAnimationFrame(animate);
            }

            function kill(objectId) {
                persons[objectId].eraseMatrix(
                    persons[objectId].x,
                    persons[objectId].y,
                    persons[objectId].width,
                    persons[objectId].height
                );
                persons[objectId] = null;
                delete persons[objectId];
            }

            canvas.onclick = function(e) {
                var i = persons.length;
                persons[i] = new Person(i);
                persons[i].x = e.layerX;
                persons[i].y = e.layerY;
            };



            function Burst(id, x, y) {
                this.id = id;
                this.x = x;
                this.y = y;
                this.r = 1;
                this.a = getRandomInt(2, 7) / 10;
            }

            Burst.prototype.draw = function() {

                context.beginPath();
                context.arc(this.x, this.y, this.r, 0, 2 * Math.PI, false);
                context.closePath();
                context.strokeStyle = "rgba(100,100,100," + this.a + ")";
                context.shadowBlur = 0;
                context.stroke();
                this.a -= .01;
                if (this.a <= 0) this.die();
                else this.r++;
            }

            Burst.prototype.die = function() {
                bursts[this.id] = null;
                delete(bursts[this.id]);
            }
        </script>
	</body>
</html>

HTML5 Canvas可在线定制的9类粒子爆发动画

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
        <style>
            body {
                background-color: #000;
                margin: 0;
                min-height: 100vh;
                overflow: hidden;
                font-family: Helvetica, Sans-serif;
                font-size: 85%;
            }
            .info {
                position: absolute;
                bottom: 0;
                left: 0;
                z-index: 100;
                background-color: rgba(200, 200, 200, .8);
                font-size: 80%;
            }
            form {
                position: absolute;
                top: 0;
                left: 0;
                z-index: 100;
                background-color: rgba(200, 200, 200, .8);
                padding: 8px;
                font-size: 80%;
            }
            form input[type=text] {
                width: 30px;
                border: 1px solid #000;
                text-align: center;
            }
            form button {
                margin: 4px auto;
                border: 1px solid #000;
                display: block;
            }
        </style>
	</head>
	<body>
        <form id="settings" onsubmit="return false">
            Particles
            <br/>
            <input type="text" id="inBubblesMin" value="150" /> To
            <input type="text" id="inBubblesMax" value="150" />
            <br/> Size

            <br/>
            <input type="text" id="inSizeMin" value="2" /> To
            <input type="text" id="inSizeMax" value="2" />
            <br/> Speed

            <br/>
            <input type="text" id="inSpeedMin" value="1" /> To
            <input type="text" id="inSpeedMax" value="1" />
            <br/> Curve

            <br/>
            <input type="text" id="inCurveMin" value=".5" /> To
            <input type="text" id="inCurveMax" value=".5" />
            <br/>
            <input type="checkbox" name="waveX" checked="checked" />Wave X
            <br/>
            <input type="checkbox" name="waveY" />Wave Y
            <br/>
            <button id="btnClear">Clear</button>
            <button id="btnSet">Burst!</button>
            <br/> Presets:
            <button id="preset1">Time Dilation</button>
            <button id="preset2">Warp Speed</button>
            <button id="preset3">Kaleider</button>
            <button id="preset4">Star Dust</button>
            <button id="preset5">Kaleidonut</button>
            <button id="preset6">Loading...</button>
            <button id="preset7">Flower Out</button>
            <button id="preset8">Flower Out 2</button>
            <button id="preset0">Default</button>
        </form>

        <script>
            // Create Canvas.
            var canvas = document.createElement('canvas');
            var ctx = canvas.getContext('2d');
            // Store all particles.
            var particles = [];
            // A lighter colorset (I can't decide).
            var colors = [
                'rgba(243,169,192,.95)',
                'rgba(255,229,154,.95)',
                'rgba(97,181,97,.95)',
                'rgba(58,144,176,.95)',
                'rgba(255,255,255,.95)'
            ];
            // The default colorset.
            var colors = [
                'rgba(69,204,255,.95)',
                'rgba(73,232,62,.95)',
                'rgba(255,212,50,.95)',
                'rgba(232,75,48,.95)',
                'rgba(178,67,255,.95)'
            ];





            // Configure settings options
            var config = {};
            var settings = document.getElementById('settings');
            initSettings();

            // Init.
            resize();
            // Fire the Burst! button.
            settings.btnSet.onclick();
            // Attach canvas.
            document.body.appendChild(canvas);
            // Begin drawing.
            window.requestAnimationFrame(draw);
            // Sync canvas to window.
            window.onresize = resize;


            function burst() {
                var n = rand(config.num[0], config.num[1]);
                var origin = [
                    canvas.width / 2,
                    canvas.height / 2
                ]
                for (var i = 0; i < n; i++) {
                    var angle = (360 / n) * (i + 1);
                    particles.push(new particle({
                        angle: angle,
                        pos: [origin[0], origin[1]],
                        size: rand(config.size[0], config.size[1]),
                        speed: rand(config.speed[0], config.speed[1]),
                        color: colors[i % 5],
                        //color:randColor(92,255),
                        waveX: config.waveX,
                        waveY: config.waveY,
                        curve: rand(config.curve[0], config.curve[1]),
                        index: i
                    }));
                }
            }

            // Drawing.
            function draw() {
                for (var i = 0; i < particles.length; i++) {
                    var p = particles[i];
                    p.move();
                    p.draw(ctx);
                }
                fade();
                window.requestAnimationFrame(draw);
            }


            function particle(options) {
                this.angle = 0;
                this.curve = 0;
                this.pos = [0, 0];
                this.size = 100;
                this.speed = 1;
                this.color = 'rgba(255,64,64,.95)';
                this.waveX = false;
                this.waveY = false;
                this.index = 0;

                // Override defaults.
                for (var i in options) {
                    this[i] = options[i];
                }

                this.move = function() {
                    this.angle += this.curve;
                    var radians = this.angle * Math.PI / 180;
                    this.pos[0] += Math.cos(radians) * this.speed,
                        this.pos[1] += Math.sin(radians) * this.speed;

                    if (this.waveX) {
                        this.pos[0] += Math.cos(this.index);
                    }
                    if (this.waveY) {
                        this.pos[1] += Math.sin(this.index);
                    }
                }
                this.draw = function(ctx) {
                    ctx.strokeStyle = this.color;
                    ctx.beginPath();
                    ctx.arc(this.pos[0], this.pos[1], this.size, 0, 2 * Math.PI);
                    ctx.stroke();
                }
            }

            function preset(options) {
                for (var i in options) {
                    if (settings[i].type == 'checkbox') {
                        settings[i].checked = options[i];
                        continue;
                    }
                    settings[i].value = options[i];
                }
                clear();
                settings.btnSet.onclick();
            }

            function fade() {
                ctx.beginPath();
                ctx.fillStyle = 'rgba(0, 0, 0, .03)';
                ctx.fillRect(0, 0, canvas.width, canvas.height);
                ctx.fill();
            }

            function clear() {
                ctx.beginPath();
                ctx.fillStyle = 'rgba(0, 0, 0, 1)';
                ctx.fillRect(0, 0, canvas.width, canvas.height);
                ctx.fill();
                particles.length = 0;
            }

            function resize() {
                canvas.width = window.innerWidth;
                canvas.height = window.innerHeight;
            }

            function initSettings() {
                settings.btnSet.onclick = function() {
                    config.num = [
                        parseFloat(settings.inBubblesMin.value),
                        parseFloat(settings.inBubblesMax.value)
                    ];
                    config.size = [
                        parseFloat(settings.inSizeMin.value),
                        parseFloat(settings.inSizeMax.value)
                    ];
                    config.speed = [
                        parseFloat(settings.inSpeedMin.value),
                        parseFloat(settings.inSpeedMax.value)
                    ];
                    config.curve = [
                        parseFloat(settings.inCurveMin.value),
                        parseFloat(settings.inCurveMax.value)
                    ];

                    config.waveX = settings.waveX.checked;
                    config.waveY = settings.waveY.checked;
                    burst();
                }

                // Configure clear button
                settings.btnClear.onclick = clear;

                // Presets.
                settings.preset0.onclick = function() {
                    preset({
                        inBubblesMin: 150,
                        inBubblesMax: 150,
                        inSizeMin: 2,
                        inSizeMax: 2,
                        inSpeedMin: 1,
                        inSpeedMax: 1,
                        inCurveMin: .5,
                        inCurveMax: .5,
                        waveX: true,
                        waveY: false
                    });
                }
                settings.preset1.onclick = function() {
                    preset({
                        inBubblesMin: 300,
                        inBubblesMax: 300,
                        inSizeMin: 2,
                        inSizeMax: 2,
                        inSpeedMin: 100,
                        inSpeedMax: 100,
                        inCurveMin: 180,
                        inCurveMax: 180,
                        waveX: true,
                        waveY: false
                    });
                }
                settings.preset2.onclick = function() {
                    preset({
                        inBubblesMin: 500,
                        inBubblesMax: 500,
                        inSizeMin: 2,
                        inSizeMax: 3,
                        inSpeedMin: 1,
                        inSpeedMax: 50,
                        inCurveMin: 0,
                        inCurveMax: 0,
                        waveX: true,
                        waveY: false
                    });
                }
                settings.preset3.onclick = function() {
                    preset({
                        inBubblesMin: 80,
                        inBubblesMax: 80,
                        inSizeMin: 500,
                        inSizeMax: 500,
                        inSpeedMin: 1,
                        inSpeedMax: 10,
                        inCurveMin: -.5,
                        inCurveMax: .5,
                        waveX: false,
                        waveY: false
                    });
                }
                settings.preset4.onclick = function() {
                    preset({
                        inBubblesMin: 100,
                        inBubblesMax: 100,
                        inSizeMin: .5,
                        inSizeMax: .5,
                        inSpeedMin: 120,
                        inSpeedMax: 120,
                        inCurveMin: 5,
                        inCurveMax: 20,
                        waveX: true,
                        waveY: false
                    });
                }
                settings.preset5.onclick = function() {
                    preset({
                        inBubblesMin: 90,
                        inBubblesMax: 90,
                        inSizeMin: 200,
                        inSizeMax: 200,
                        inSpeedMin: 2,
                        inSpeedMax: 2,
                        inCurveMin: .5,
                        inCurveMax: .5,
                        waveX: false,
                        waveY: false
                    });
                }
                settings.preset6.onclick = function() {
                    preset({
                        inBubblesMin: 5,
                        inBubblesMax: 5,
                        inSizeMin: 16,
                        inSizeMax: 16,
                        inSpeedMin: 1.8,
                        inSpeedMax: 1.8,
                        inCurveMin: 1.8,
                        inCurveMax: 1.8,
                        waveX: false,
                        waveY: false
                    });
                }
                settings.preset7.onclick = function() {
                    preset({
                        inBubblesMin: 300,
                        inBubblesMax: 300,
                        inSizeMin: 2,
                        inSizeMax: 2,
                        inSpeedMin: 2,
                        inSpeedMax: 2,
                        inCurveMin: 1,
                        inCurveMax: 1,
                        waveX: true,
                        waveY: true
                    });
                }
                settings.preset8.onclick = function() {
                    preset({
                        inBubblesMin: 300,
                        inBubblesMax: 300,
                        inSizeMin: .5,
                        inSizeMax: .5,
                        inSpeedMin: 6,
                        inSpeedMax: 6,
                        inCurveMin: 1.5,
                        inCurveMax: 1.5,
                        waveX: true,
                        waveY: true
                    });
                }
            }



            /* Common functions */

            function rand(min, max) {
                return Math.random() * (max - min) + min;
            }

            function randColor(min, max) {
                var r = Math.floor(rand(min, max)),
                    g = Math.floor(rand(min, max)),
                    b = Math.floor(rand(min, max));
                return 'rgba(' + r + ',' + g + ',' + b + ',1)';
            }
        </script>
	</body>
</html>

HTML5 Canvas炫彩粒子特效生成器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
        <style>
            body {
                margin: 0;
                height: 100vh;
                background-color: #1d1f20;
            }
            ::-webkit-scrollbar {
                display: none;
            }
            #container {
                display: flex;
                justify-content: center;
                align-items: center;
                width: 100%;
                height: 100%;
            }
            canvas {
                max-width: 100%;
                max-height: 100%;
            }
        </style>
	</head>
	<body>
        <div id="container">
            <canvas id="noise"></canvas>
        </div>

        <script src='https://cdnjs.cloudflare.com/ajax/libs/lodash.js/4.17.4/lodash.min.js'></script>
        <script src='https://cdnjs.cloudflare.com/ajax/libs/FileSaver.js/1.3.3/FileSaver.min.js'></script>
        <script src='https://cdnjs.cloudflare.com/ajax/libs/dat-gui/0.6.5/dat.gui.min.js'></script>

        <script>
            // from https://gist.github.com/mjackson/5311256

            /**
             * Converts an RGB color value to HSL. Conversion formula
             * adapted from https://en.wikipedia.org/wiki/HSL_color_space.
             * Assumes r, g, and b are contained in the set [0, 255] and
             * returns h, s, and l in the set [0, 1].
             *
             * @param   Number  r       The red color value
             * @param   Number  g       The green color value
             * @param   Number  b       The blue color value
             * @return  Array           The HSL representation
             */
            function rgb2hsl(r, g, b) {
                r /= 255, g /= 255, b /= 255;

                var max = Math.max(r, g, b),
                    min = Math.min(r, g, b);
                var h, s, l = (max + min) / 2;

                if (max == min) {
                    h = s = 0; // achromatic
                } else {
                    var d = max - min;
                    s = l > 0.5 ? d / (2 - max - min) : d / (max + min);

                    switch (max) {
                        case r:
                            h = (g - b) / d + (g < b ? 6 : 0);
                            break;
                        case g:
                            h = (b - r) / d + 2;
                            break;
                        case b:
                            h = (r - g) / d + 4;
                            break;
                    }

                    h /= 6;
                }

                return [h, s, l];
            }

            /**
             * Converts an HSL color value to RGB. Conversion formula
             * adapted from https://en.wikipedia.org/wiki/HSL_color_space.
             * Assumes h, s, and l are contained in the set [0, 1] and
             * returns r, g, and b in the set [0, 255].
             *
             * @param   Number  h       The hue
             * @param   Number  s       The saturation
             * @param   Number  l       The lightness
             * @return  Array           The RGB representation
             */
            function hsl2rgb(h, s, l) {
                var r, g, b;

                if (s == 0) {
                    r = g = b = l; // achromatic
                } else {
                    function hue2rgb(p, q, t) {
                        if (t < 0) t += 1;
                        if (t > 1) t -= 1;
                        if (t < 1 / 6) return p + (q - p) * 6 * t;
                        if (t < 1 / 2) return q;
                        if (t < 2 / 3) return p + (q - p) * (2 / 3 - t) * 6;
                        return p;
                    }

                    var q = l < 0.5 ? l * (1 + s) : l + s - l * s;
                    var p = 2 * l - q;

                    r = hue2rgb(p, q, h + 1 / 3);
                    g = hue2rgb(p, q, h);
                    b = hue2rgb(p, q, h - 1 / 3);
                }

                return [r * 255, g * 255, b * 255];
            }
        </script>

        <script>
            const tau = 2 * Math.PI
            const { random } = _
            const { abs, max, sin, cos } = Math

            // a collection of Vector methods
            class Vector {
              constructor (x = 0, y = 0) {
                this.x = x
                this.y = y
              }

              static fromPolar (r, a) {
                let x = r * cos(a),
                    y = r * sin(a)
                return new Vector(x, y)
              }

              clone () {
                return new Vector(this.x, this.y)
              }

              add (v) {
                this.x += v.x
                this.y += v.y
                return this
              }

              mul (x) {
                this.x *= x
                this.y *= x
                return this
              }

              dist (v) {
                let dx, dy
                return Math.sqrt(
                  (dx = this.x - v.x) * dx,
                  (dy = this.y - v.y) * dy)
              }

              get r () {
                return Math.sqrt(
                  this.x * this.x +
                  this.y * this.y)
              }

              set r (r) {
                let n = this.norm()
                this.x = r * n.x
                this.y = r * n.y
                return r
              }

              get a () {
                return Math.atan2(this.y, this.x)
              }

              set a (a) {
                let r = this.r
                this.x = r * cos(a)
                this.y = r * sin(a)
                return a
              }

              norm () {
                let r = this.r
                return new Vector(
                  this.x / r, this.y / r)
              }
            }

            // canvas' built-in drawing methods have a lot of
            // overhead. this buffer class is for optimized
            // drawing of pixels with alpha. it works by directly
            // manipulating pixel data and flushing to the canvas
            // by calling putImageData
            class CanvasBuffer {
              constructor (canvas) {
                this.ctx = canvas.getContext("2d")
                this.width = canvas.width
                this.height = canvas.height
                this.center = new Vector(this.width / 2, this.height / 2)
                this.ncenter = this.center.clone().mul(-1)
                this.clear()
              }

              clear () {
                this.ctx.fillStyle = "#000"
                this.ctx.fillRect(0, 0, this.width, this.height)
                this.buf = this.ctx.getImageData(0, 0, this.width, this.height)
              }

              // draws floating point coordinate pixel
              // with bilinear interpolation
              drawPixel (x, y, c) {
                let fx = ~~x,
                    fy = ~~y,
                    dx = x - fx,
                    dy = y - fy

                this.drawCell(fx, fy, c, (1 - dx) * (1 - dy))
                this.drawCell(fx + 1, fy, c, dx * (1 - dy))
                this.drawCell(fx, fy + 1, c, (1 - dx) * dy)
                this.drawCell(fx + 1, fy + 1, c, dx * dy)
              }

              // set color of cell with alpha, for drawPixel
              drawCell (x, y, c, a) {
                if (x < 0 || x >= this.width) return
                if (y < 0 || y >= this.height) return

                let data = this.buf.data,
                    i = 4 * (x + y * this.width),
                    r = data[i + 0],
                    g = data[i + 1],
                    b = data[i + 2]

                a *= c[3]
                r += c[0] * a
                g += c[1] * a
                b += c[2] * a

                // overflow color math so red + red = white
                let ro = max(0, r - 255),
                    go = max(0, g - 255),
                    bo = max(0, b - 255),
                    to = (ro + bo + go) / 6

                data[i + 0] = r + to
                data[i + 1] = g + to
                data[i + 2] = b + to
              }

              flush () {
                this.ctx.putImageData(this.buf, 0, 0)
              }
            }

            // a class for generating composite noise textures
            // and reading values of the texture at a position
            class Noise {
              constructor (settings) {
                this.width = settings.width
                this.height = settings.height
                this.type = settings.type
                this.strength = settings.strength

                this.canvas = Noise.compositeNoise(
                  this.width, this.height, settings.startOctave, settings.endOctave)
                let ctx = this.canvas.getContext('2d')
                this.data = ctx.getImageData(0, 0, this.width, this.height).data
              }

              // create w by h noise
              static noise (w, h) {
                let cv = document.createElement('canvas'),
                    ctx = cv.getContext('2d')

                cv.width = w
                cv.height = h

                let img = ctx.getImageData(0, 0, w, h),
                    data = img.data

                for (let i = 0, l = data.length; i < l; i += 4) {
                  data[i + 0] = random(0, 255)
                  data[i + 1] = random(0, 255)
                  data[i + 2] = random(0, 255)
                  data[i + 3] = 255
                }

                ctx.putImageData(img, 0, 0)
                return cv;
              }

              // create composite noise with multiple octaves
              static compositeNoise (w, h, soct, eoct) {
                let cv = document.createElement('canvas'),
                    ctx = cv.getContext('2d')

                cv.width = w
                cv.height = h

                ctx.fillStyle = '#000'
                ctx.fillRect(0, 0, w, h)

                ctx.globalCompositeOperation = 'lighter'
                ctx.globalAlpha = 1 / (eoct - soct)

                for (let i = soct; i < eoct; i++) {
                  let noise = Noise.noise(w >> i, h >> i)
                  ctx.drawImage(noise, 0, 0, w, h)
                }

                return cv
              }

              // returns noise value from -1.0 to 1.0
              getNoise (x, y, ch = 0) {
                // bitwise ~~ to floor
                let i = (~~x + ~~y * this.width) * 4
                return this.data[i + ch] / 127.5 - 1
              }
            }

            class Particle {
              constructor (system, x = 0, y = 0) {
                this.system = system
                this.pos = new Vector(x, y)
                this.vel = new Vector()
                this.col = [255, 255, 255, 0.1]
              }

              update () {
                let { x, y } = this.pos,
                    noise = this.system.noise,
                    dx = noise.getNoise(x, y, 0),
                    dy = noise.getNoise(x, y, noise.type == 2 ? 0 : 1),
                    d = new Vector(dx, dy).mul(noise.strength)

                this.col[3] *= 0.99

                this.vel.mul(1 - this.system.friction)
                this.vel.add(d)

                if ((noise.type == 0 && this.vel.r > this.system.speed)
                    || noise.type == 1)
                  this.vel.r = this.system.speed
              }
            }

            class ParticleSystem {
              constructor (settings, noise, buffer) {
                this.noise = noise
                this.buffer = buffer
                this.particles = []

                this.num = settings.numParticles
                this.subFrames = settings.subFrames

                this.speed = settings.speed
                this.friction = settings.friction

                for (let i = 0; i < this.num; i++)
                  this.particles.push(new Particle(this))

                let r = (this.buffer.height / 2) * settings.radius

                switch (settings.shape) {
                  case 'circle': this.circle(r); break;
                  case 'triangle': this.polygon(r, 3); break;
                  case 'triangle2': this.polygon(r, 3, tau / 2); break;
                  case 'square': this.polygon(r, 4, tau / 8); break;
                  case 'square2': this.polygon(r, 4); break;
                  case 'hexagon': this.polygon(r, 6); break;
                  case 'hexagon2': this.polygon(r, 6, tau / 12); break;
                  case 'star': this.star(r); break;
                  case 'random': this.random(r); break;
                }

                this.setVels(settings.velocity, this.speed)

                if (settings.colorType == 'solid')
                  this.colorify(settings.color.concat(settings.alpha))

                if (settings.colorType == 'rainbow')
                  this.rainbowify(settings.alpha)
              }

              circle (radius, thickness = 0) {
                for (let p of this.particles) {
                  // get random radius and angle
                  let r1 = radius + thickness * random(-0.5, 0.5),
                      a1 = random(0, tau),
                      r2 = random(0, 1, true),
                      a2 = random(0, tau)

                  let pos = Vector.fromPolar(r1, a1),
                      vel = Vector.fromPolar(-3, a1)

                  pos.add(this.buffer.center)

                  p.pos = pos
                  p.vel = vel
                }
              }

              polygon (radius, sides, angle = 0) {
                // calculate lines of polygon
                let lines = []
                for (let i = 0; i < sides; i++) {
                  let a = i * tau / sides - tau / 4 + angle,
                      x1 = radius * cos(a),
                      y1 = radius * sin(a),
                      x2 = radius * cos(a + tau / sides),
                      y2 = radius * sin(a + tau / sides)
                  lines.push({ x1, y1, x2, y2 })
                }

                let yd = (abs(lines[0].y1) - abs(lines[sides >> 1].y1)) / 2
                if (lines[0].y1 > lines[sides >> 1].y1) yd *= -1

                for (let p of this.particles) {
                  // choose random line
                  let { x1, x2, y1, y2 } = lines[random(0, sides - 1)]
                  // lerp between points
                  let t = random(0, 1, true),
                      x = x1 + t * (x2 - x1),
                      y = y1 + t * (y2 - y1)

                  let pos = new Vector(x, y)

                  // center on canvas
                  pos.add(this.buffer.center)
                  pos.y += yd

                  p.pos = pos
                }
              }

              star (radius) {
                // calculate lines of star
                let lines = []
                for (let i = 0; i < 5; i++) {
                  let a = i * tau / 5 - tau / 4,
                      x1 = radius * cos(a),
                      y1 = radius * sin(a),
                      x2 = radius * cos(a + tau * 2 / 5),
                      y2 = radius * sin(a + tau * 2 / 5)
                  lines.push({ x1, y1, x2, y2 })
                }

                // centering factor
                let yd = (abs(lines[0].y1) - abs(lines[2].y1)) / 2

                for (let p of this.particles) {
                  // choose random line
                  let { x1, x2, y1, y2 } = lines[random(0, 4)]

                  // magic number is tip to valley on star
                  let t = random(0, 0.381966011250105)
                  if (random(0, 1)) t = 1 - t

                  // lerp between points
                  let x = x1 + t * (x2 - x1),
                      y = y1 + t * (y2 - y1)

                  let pos = new Vector(x, y)

                  // center on canvas
                  pos.add(this.buffer.center)
                  pos.y += yd

                  p.pos = pos
                }
              }

              fn (fn, domain) {
                for (let p of this.particles) {
                  let x = random(...domain, 1),
                      y = fn(x),
                      t = (x + domain[0]) / (domain[1] - domain[0]),
                      rgb = hsl2rgb(t, 1, 0.5)

                  let pos = new Vector(x, y)

                  pos.add(this.buffer.center)
                  rgb.push(p.col[3])

                  p.col = rgb
                  p.pos = pos
                }
              }

              random () {
                for (let p of this.particles) {
                  let x = random(0, this.buffer.width, true),
                      y = random(0, this.buffer.height, true)
                  p.pos = new Vector(x, y)
                }
              }

              // 0 = frozen, 1 = outward, 2 = inward
              setVels (dir, speed) {
                for (let p of this.particles) {
                  if (dir == 0) {
                    p.vel.mul(0)
                  } else {
                    let vel = p.pos.clone().add(this.buffer.ncenter)
                    vel.r = (dir == 2 ? -1 : 1) * speed
                    p.vel = vel
                  }
                }
              }

              update () {
                let n = this.subFrames

                // break up into n steps to make smooth lines
                for (let p of this.particles) {
                  p.update(this.noise)
                  let step = p.vel.clone().mul(1 / n)
                  for (let i = 0; i < n; i++) {
                    this.buffer.drawPixel(p.pos.x, p.pos.y, p.col)
                    p.pos.add(step)
                  }
                }

                this.buffer.flush()
              }

              rainbowify (alpha) {
                for (let p of this.particles) {
                  let c = p.pos.clone().add(this.buffer.ncenter),
                      a = (c.a + tau / 4) / tau,
                      rgb = hsl2rgb(a, 1, 0.5)

                  rgb.push(alpha)
                  p.col = rgb
                }
              }

              colorify (col) {
                for (let p of this.particles)
                  p.col = col.slice()
              }
            }

            class ParticleNoise {
              constructor (canvas) {
                this.canvas = canvas
                this.renderID = 0
              }

              generate (settings) {
                let {
                  width, height, shape,
                  startOctave, endOctave,
                  numParticles, numFrames
                } = settings

                this.frame = 0
                this.numFrames = numFrames
                this.shape = shape

                this.canvas.width = width
                this.canvas.height = height

                this.buffer = new CanvasBuffer(this.canvas)
                this.noise = new Noise(settings)
                this.particles = new ParticleSystem(settings, this.noise, this.buffer)

                this.stop()
                this.render()
              }

              render () {
                this.frame++
                this.particles.update()

                // update progress bar at 30fps
                if (this.frame == this.numFrames || this.frame % 2 == 0)
                  settings.progress = 100 * this.frame / this.numFrames

                if (this.frame < this.numFrames)
                  this.renderID = window.requestAnimationFrame(this.render.bind(this))
                else {
                  this.renderID = 0
                  if (settings.autogenerate)
                    this.generate(settings)
                }
              }

              save () {
                let rnd = new Array(5).fill(0).map(() => Math.floor(36 * Math.random()).toString(36)).join('')
                let name = `noise-${this.shape}-${rnd}.png`
                this.canvas.toBlob(blob => {
                  saveAs(blob, name)
                })
              }

              stop () {
                if (this.renderID) {
                  window.cancelAnimationFrame(this.renderID)
                  this.renderID = 0
                  settings.progress = 0
                }
              }

              invert () {
                this.stop()
                let ctx = this.canvas.getContext('2d')
                let img = ctx.getImageData(0, 0, this.canvas.width, this.canvas.height)
                for (let i = 0; i < img.data.length; i += 4) {
                  img.data[i + 0] = 255 - img.data[i + 0]
                  img.data[i + 1] = 255 - img.data[i + 1]
                  img.data[i + 2] = 255 - img.data[i + 2]
                }
                ctx.putImageData(img, 0, 0)
              }
            }

            let PN = new ParticleNoise(document.getElementById('noise'))
            let dpr = 2//window.devicePixelRatio

            let settings = {
              width: window.innerWidth * dpr,
              height: window.innerHeight * dpr,
              type: 0,
              strength: 1,
              startOctave: 5,
              endOctave: 8,
              numParticles: 10000,
              numFrames: 300,
              subFrames: 4,
              progress: 0,
              shape: 'triangle',
              radius: 0.7,
              colorType: 'rainbow',
              color: [127, 0, 255],
              alpha: 0.1,
              velocity: 0,
              speed: 3,
              friction: 0.05,
              autogenerate: true,
              save: () => PN.save(),
              stop: () => PN.stop(),
              invert: () => PN.invert(),
              generate: () => PN.generate(settings)
            }

            settings.generate()

            let gui = new dat.GUI()

            let rndr = gui.addFolder('rendering')
            rndr.add(settings, 'width')
            rndr.add(settings, 'height')
            rndr.add(settings, 'numParticles', 10, 3e4, 1)
            rndr.add(settings, 'numFrames', 1, 600, 1)
            rndr.add(settings, 'subFrames', 1, 10, 1)
            rndr.open()

            let col = gui.addFolder('particles')
            col.add(settings, 'shape', ['circle', 'triangle', 'triangle2', 'square', 'square2', 'hexagon', 'hexagon2', 'star', 'random'])
            col.add(settings, 'radius', 0.1, 1)
            col.add(settings, 'velocity', {'none': 0, 'outward': 1, 'inward': 2}).name('initial velocity')
            col.add(settings, 'speed', 0.1, 10)
            col.add(settings, 'friction', 0, 1)
            col.add(settings, 'colorType', ['solid', 'rainbow'])
            col.addColor(settings, 'color')
            col.add(settings, 'alpha', 0, 1)
            col.open()

            let nz = gui.addFolder('noise')
            nz.add(settings, 'type', {'ink': 0, 'loop': 1, 'streak': 2})
            nz.add(settings, 'strength', 0.1, 10, 0.1)
            nz.add(settings, 'startOctave', 0, 10, 1).onChange(update)
            nz.add(settings, 'endOctave', 0, 11, 1).onChange(update)
            nz.open()

            gui.add(settings, 'invert')
            gui.add(settings, 'save')
            gui.add(settings, 'stop')
            gui.add(settings, 'autogenerate')
            gui.add(settings, 'progress', 0, 100, 1).listen()
            gui.add(settings, 'generate')

            function update() {
              for (let c of nz.__controllers) {
                switch (c.property) {
                  case "endOctave":
                    let min = settings.startOctave + 1;
                    if (c.getValue() < min)
                      c.setValue(min)
                    break;
                }
              }
            }
        </script>
	</body>
</html>

HTML5 Canvas图像粒子化渐显动画特效

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
        <style>
            :root {
                --width: 0;
                --height: 0;
            }

            body {
                margin: 0;
                overflow: hidden;
                background: #000;
            }

            body  canvas {
                position: absolute;
                left: calc(50% - (var(--width))/2);
                top: calc(50% - (var(--height))/2);
                width: var(--width);
                height: var(--height);
                border-radius: 8px;
            }
        </style>
	</head>
	<body>
        <canvas id="c"></canvas>

        <script>
            // 注意这边不是用的刮刮卡方式实现
            var c = document.getElementById('c'),
                c_ = document.createElement('canvas'),
                ctx = c.getContext('2d'),
                ctx_ = c_.getContext('2d'),
                dots = [],
                delta = 10,
                dot_size = 1,
                count = 200,
                img,
                src = "https://wow.techbrood.com/uploads/161001/normal1.jpg";

            function Dot(x, y, dx, dy, color) {
                this.x = x;
                this.y = y;
                this.dx = dx;
                this.dy = dy;
                this.color = color;
            }

            function drawDot(dot) {
                ctx.fillStyle = dot.color;
                ctx.beginPath();
                ctx.arc(dot.x, dot.y, dot_size, 0, 2 * Math.PI);
                ctx.fill();
            }

            function getColor(x, y) {
                var pixel = ctx_.getImageData(x, y, 1, 1),
                    data = pixel.data,
                    color = 'rgba(' + data[0] + ',' + data[1] + ',' + data[2] + ',' + (data[3] / 255) +
                    ')';

                return color;
            }

            function initDot() {
                var x = c.width / 2,
                    y = c.height / 2,
                    dx = -delta / 2 + delta * Math.random(),
                    dy = -delta / 2 + delta * Math.random(),
                    color = getColor(x, y);
                dots.push(new Dot(x, y, dx, dy, color));
            }

            img = new Image();
            img.crossOrigin = 'anonymous';
            img.src = src;
            img.onload = function() {
                c.width = c_.width = img.width;
                c.height = c_.height = img.height;
                c.style.setProperty('--width', c.width + 'px');
                c.style.setProperty('--height', c.height + 'px');
                ctx_.drawImage(img, 0, 0);

                for (var i = 0; i < count; i++) {
                    initDot();
                }
                draw();
            }

            function update() {
                for (var i = 0; i < dots.length; i++) {
                    var dot = dots[i],
                        xDx = dot.x + dot.dx,
                        yDy = dot.y + dot.dy;

                    if (xDx - dot_size < 0 || xDx + dot_size > c.width) {
                        dot.dx = -dot.dx;
                    }

                    if (yDy - dot_size < 0 || yDy + dot_size > c.height) {
                        dot.dy = -dot.dy;
                    }

                    dot.x += dot.dx;
                    dot.y += dot.dy;
                    dot.color = getColor(dot.x, dot.y);

                    drawDot(dot);
                }
            }

            window.requestAnimFrame = (function() {
                return window.requestAnimationFrame ||
                    window.webkitRequestAnimationFrame ||
                    window.mozRequestAnimationFrame ||
                    window.oRequestAnimationFrame ||
                    window.msRequestAnimationFrame ||
                    function(callback) {
                        window.setTimeout(callback, 1000 / 60);
                    };
            })();

            function draw() {
                update();
                window.requestAnimFrame(draw);
            }
        </script>
	</body>
</html>

HTML5 Canvas粉尘态粒子引力效应动画特效

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
        <style>
            * {
                margin: 0;
                padding: 0;
            }
            html {
                overflow: hidden;
            }
            canvas {
                cursor: none;
            }
        </style>
	</head>
	<body>
        <canvas id=canvas></canvas>

        <!--move mouse or click -->

        <script>
            window.onload = function() {

                var canvas = document.getElementById("canvas");
                var ctx = canvas.getContext("2d");

                var pi = Math.PI;

                var centerX, centerY;
                var part_num = 2000;

                var mousedown = false;
                var X, Y;
                /*===========================================================================*/

                /*===========================================================================*/
                var P = [];
                var part = function(x, y, vx, vy, r, red, green, blue, alpha, col) {
                    this.x = x;
                    this.y = y;
                    this.vx = vx;
                    this.vy = vy;
                    this.r = r;
                    this.red = red;
                    this.green = green;
                    this.blue = blue;
                    this.alpha = alpha;
                    this.col = col;
                };

                function rand(min, max) {
                    return Math.random() * (max - min) + min;
                }

                function dist(dx, dy) {
                    return Math.sqrt(dx * dx + dy * dy);
                }

                function size() {
                    canvas.width = window.innerWidth;
                    canvas.height = window.innerHeight;

                    centerX = canvas.width / 2;
                    centerY = canvas.height / 2;
                }
                size();
                X = centerX;
                Y = centerY;

                function init() {
                    var x, y, vx, vy, r, red, green, blue, alpha, col;
                    for (var i = 0; i < part_num; i++) {
                        x = rand(0, canvas.width);
                        y = rand(0, canvas.height);
                        vx = rand(-1, 1);
                        vy = rand(-1, 1);
                        r = rand(1, 3);
                        red = Math.round(rand(150, 200));
                        green = Math.round(rand(100, 255));
                        blue = Math.round(rand(180, 255));
                        alpha = 1;
                        col = "rgba(" + red + "," + green + "," + blue + "," + alpha + ")";

                        P.push(new part(x, y, vx, vy, r, red, green, blue, alpha, col));
                    }
                }

                function bg() {
                    ctx.fillStyle = "rgba(25,25,30,1)";
                    ctx.fillRect(0, 0, canvas.width, canvas.height);
                    //ctx.clearRect(0, 0, canvas.width, canvas.height);
                }

                function bounce(b) {

                    if (b.x < b.r) {
                        b.x = b.r;
                        b.vx *= -1;
                    }
                    if (b.x > canvas.width - b.r) {
                        b.x = canvas.width - b.r;
                        b.vx *= -1;
                    }

                    if (b.y - b.r < 0) {
                        b.y = b.r;
                        b.vy *= -1;
                    }
                    if (b.y > canvas.height - b.r) {
                        b.y = canvas.height - b.r;
                        b.vy *= -1;
                    }
                }

                function attract(p) {

                    var dx = (p.x - X),
                        dy = (p.y - Y),
                        dist = Math.sqrt(dx * dx + dy * dy),
                        angle = Math.atan2(dy, dx);

                    if (dist > 10 && dist < 300) {
                        if (!mousedown) {
                            p.vx -= (20 / (p.r * dist)) * Math.cos(angle);
                            p.vy -= (20 / (p.r * dist)) * Math.sin(angle);
                        } else if (mousedown) {
                            p.vx += (250 / (p.r * dist)) * Math.cos(angle);
                            p.vy += (250 / (p.r * dist)) * Math.sin(angle);
                        }
                    }

                }

                function draw() {
                    var p;
                    for (var i = 0; i < P.length; i++) {
                        p = P[i];

                        if (mouseover) attract(p);
                        bounce(p);

                        p.x += p.vx;
                        p.y += p.vy;

                        p.vx *= .975;
                        p.vy *= .975;

                        ctx.fillStyle = p.col;
                        ctx.fillRect(p.x, p.y, p.r, p.r);
                        //ctx.beginPath();
                        //ctx.fillStyle = p.col;
                        //ctx.arc(p.x, p.y, p.r, 0, 2 * pi);
                        //ctx.fill();


                    }
                    ctx.strokeStyle = (!mousedown) ? "rgba(255,255,255,1)" : "rgba(255,0,0,1)";

                    ctx.beginPath();
                    ctx.moveTo(X, Y - 10);
                    ctx.lineTo(X, Y + 10);
                    ctx.moveTo(X - 10, Y);
                    ctx.lineTo(X + 10, Y);
                    ctx.stroke();

                }

                function loop() {
                    bg();
                    draw();

                    window.requestAnimationFrame(loop);
                }

                window.onresize = size;

                window.onmousemove = function(e) {
                    X = e.clientX;
                    Y = e.clientY;
                }

                window.onmousedown = function() {
                    mousedown = true;
                }

                window.onmouseup = function() {
                    mousedown = false;
                }

                var mouseover = false;

                window.onmouseover = function() {
                    mouseover = true;
                }

                window.onmouseout = function() {
                    mouseover = false;
                }

                init();
                loop();
            }
        </script>
	</body>
</html>

nanogl逼真的3D冰凌雪花模型和漫天飞雪特效

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
        <style>
            *,
            *:after,
            *:before {
                box-sizing: border-box;
                margin: 0;
                padding: 0;
            }
            html,
            body {
                margin: 0;
                padding: 0;
                width: 100%;
                height: 100%;
                overflow: hidden;
            }
            body {
                overflow: hidden;
                background: radial-gradient(circle at center, #ff1a1a, #420000);
            }
            canvas {
                display: block;
                width: 100%;
                height: 100%;
            }
        </style>
	</head>
	<body>
        <script src="https://wow.techbrood.com/uploads/1907/nanogl.js"></script>
        <script src="https://unpkg.com/gl-matrix@2.8.1/dist/gl-matrix.js"></script>

        <script type="shader/vertex" id="snowstorm-vert">
        uniform mat4 u_projection;
        uniform mat4 u_view;
        uniform mat4 u_model;
        uniform float u_time;
        attribute vec3 position;
        attribute float offset;
        attribute float size;
        varying float v_alpha;

        void main() {
          // snowfall logic adapted from:
          // https://oos.moxiecode.com/js_webgl/snowfall/
          float time = offset + u_time * 0.00005;
          float modTime = mod(time, 1.0);
          time = modTime * modTime;
          vec3 pos = position;
          pos.x += cos(time * 5.0 + position.z) * 5.0;
          pos.y *= time;
          pos.z += sin(time * 5.0 + position.x) * 5.0;
          gl_Position = u_projection * u_view * u_model * vec4(pos, 1.0);
          gl_PointSize = min(150.0, size * (150.0 / length(gl_Position.xyz)));
          v_alpha = gl_PointSize / 50.0;
        }
        </script>

        <script type="shader/vertex" id="snowstorm-frag">
        varying float v_alpha;

        void main() {
          // render a gl.POINT as a circle
          // https://www.desultoryquest.com/blog/drawing-anti-aliased-circular-points-using-opengl-slash-webgl/
          vec2 xy = 2.0 * gl_PointCoord - 1.0;
          float radius = dot(xy, xy);
          if(radius > 1.0) discard;
          // render the point with with a slight blur / soft edge
          // change the gl_FragColor to use v_alpha to see the difference
          float alpha = v_alpha * mix(1.0, 0.0, length(radius)) * 0.5;
          gl_FragColor = vec4(1, 1, 1, alpha);
        }
        </script>

        <script type="shader/vertex" id="snowflake-vert">
        uniform mat4 u_model;
        uniform mat4 u_view;
        uniform mat4 u_projection;
        uniform vec2 u_resolution;
        uniform vec2 u_mouse;
        uniform float u_time;
        attribute float index;
        attribute vec3 position;
        attribute vec4 color;
        varying vec4 v_color;

        void main() {

          v_color = color;

          vec3 pos = position;
          pos.z += sin(index + u_time * 0.001) * 0.1;

          // mat4 explode;
          // float intensity = 0.5 * sin(u_time * 0.015) + 0.5 * sin(u_time * 0.005);
          // float rescale = 1.0 + 0.5 * intensity;
          // float angle = u_time * 0.002;
          // explode[0] = vec4(rescale * sin(angle), cos(angle), 0.0, 0.0);
          // explode[1] = vec4(-cos(angle), rescale * sin(angle), 0.0, 0.0);
          // explode[2] = vec4(0.0, 0.0, rescale, 0.0);
          // explode[3] = vec4(0.0, 0.0, 0.0, rescale);
          // mat4 matrix = u_projection * u_view * u_model * explode;
          // gl_Position = matrix * vec4(pos, 1.0);
          gl_Position = u_projection * u_view * u_model * vec4(pos, 1.0);
        }
        </script>

        <script type="shader/vertex" id="snowflake-frag">
        varying vec4 v_color;

        void main() {
          gl_FragColor = v_color;
        }
        </script>

        <script>
        window.complex = {"positions":[[0.06211642175912857,-0.08497891575098038,0],[-0.032064758241176605,-0.08468912541866302,0],[-0.014363478869199753,-0.05202816054224968,0],[0.06211642175912857,-0.08497891575098038,0],[0.09370777755975723,-0.03757401555776596,0],[0.135721817612648,-0.05977260321378708,0],[0.06211642175912857,-0.08497891575098038,0],[-0.014363478869199753,-0.05202816054224968,0],[0.07669702172279358,-0.031432997435331345,0],[0.06211642175912857,-0.08497891575098038,0],[0.05650078505277634,-0.22343795001506805,0],[-0.032064758241176605,-0.08468912541866302,0],[0.06211642175912857,-0.08497891575098038,0],[0.07669702172279358,-0.031432997435331345,0],[0.09370777755975723,-0.03757401555776596,0],[0.06211642175912857,-0.08497891575098038,0],[0.135721817612648,-0.05977260321378708,0],[0.22990381717681885,-0.18727415800094604,0],[0.06211642175912857,-0.08497891575098038,0],[0.06211642175912857,-0.2965243458747864,0],[0.05650078505277634,-0.22343795001506805,0],[0.22990381717681885,-0.18727415800094604,0],[0.3781304955482483,-0.1609034389257431,0],[0.33321332931518555,-0.2474776655435562,0],[0.22990381717681885,-0.18727415800094604,0],[0.33321332931518555,-0.2474776655435562,0],[0.324548602104187,-0.3197607398033142,0],[0.22990381717681885,-0.18727415800094604,0],[0.324548602104187,-0.3197607398033142,0],[0.26264989376068115,-0.4466346502304077,0],[0.22990381717681885,-0.18727415800094604,0],[0.135721817612648,-0.05977260321378708,0],[0.27264758944511414,-0.09990300983190536,0],[0.22990381717681885,-0.18727415800094604,0],[0.27264758944511414,-0.09990300983190536,0],[0.3781304955482483,-0.1609034389257431,0],[0.26264989376068115,-0.4466346502304077,0],[0.06211642175912857,-0.4183802902698517,0],[0.06211642175912857,-0.2965243458747864,0],[0.26264989376068115,-0.4466346502304077,0],[0.29307764768600464,-0.5920358896255493,0],[0.06211642175912857,-0.4183802902698517,0],[0.26264989376068115,-0.4466346502304077,0],[0.36653897166252136,-0.5463942289352417,0],[0.29307764768600464,-0.5920358896255493,0],[0.26264989376068115,-0.4466346502304077,0],[0.324548602104187,-0.3197607398033142,0],[0.36653897166252136,-0.5463942289352417,0],[-0.19449107348918915,-0.17379900813102722,0],[-0.18010908365249634,-0.11171084642410278,0],[-0.032064758241176605,-0.08468912541866302,0],[-0.19449107348918915,-0.17379900813102722,0],[-0.24841752648353577,-0.18464961647987366,0],[-0.18010908365249634,-0.11171084642410278,0],[-0.19449107348918915,-0.17379900813102722,0],[-0.24288570880889893,-0.19698207080364227,0],[-0.24841752648353577,-0.18464961647987366,0],[-0.032064758241176605,-0.08468912541866302,0],[-0.09791913628578186,0.00036372101749293506,0],[-0.014363478869199753,-0.05202816054224968,0],[-0.032064758241176605,-0.08468912541866302,0],[-0.18523892760276794,-0.07798518240451813,0],[-0.09791913628578186,0.00036372101749293506,0],[-0.032064758241176605,-0.08468912541866302,0],[-0.18010908365249634,-0.11171084642410278,0],[-0.18523892760276794,-0.07798518240451813,0],[-0.032064758241176605,-0.08468912541866302,0],[0.05650078505277634,-0.22343795001506805,0],[-0.032064758241176605,-0.28442567586898804,0],[-0.032064758241176605,-0.28442567586898804,0],[-0.032499440014362335,-0.40671631693840027,0],[-0.2617219388484955,-0.44648975133895874,0],[-0.032064758241176605,-0.28442567586898804,0],[0.05650078505277634,-0.22343795001506805,0],[0.06211642175912857,-0.2965243458747864,0],[-0.032064758241176605,-0.28442567586898804,0],[-0.00177862960845232,-0.37985581159591675,0],[-0.032499440014362335,-0.40671631693840027,0],[-0.032064758241176605,-0.28442567586898804,0],[0.06211642175912857,-0.2965243458747864,0],[-0.00177862960845232,-0.37985581159591675,0],[-0.2617219388484955,-0.44648975133895874,0],[-0.3488757610321045,-0.2581998407840729,0],[-0.2901249825954437,-0.26447218656539917,0],[-0.2617219388484955,-0.44648975133895874,0],[-0.29403331875801086,-0.5921807885169983,0],[-0.37726524472236633,-0.5336626768112183,0],[-0.2617219388484955,-0.44648975133895874,0],[-0.032499440014362335,-0.40671631693840027,0],[-0.29403331875801086,-0.5921807885169983,0],[-0.2617219388484955,-0.44648975133895874,0],[-0.37726524472236633,-0.5336626768112183,0],[-0.3488757610321045,-0.2581998407840729,0],[-0.2617219388484955,-0.44648975133895874,0],[-0.2901249825954437,-0.26447218656539917,0],[-0.24288570880889893,-0.19698207080364227,0],[-0.2937435507774353,0.11338113248348236,0],[-0.23484407365322113,0.19676770269870758,0],[-0.18295370042324066,0.055295493453741074,0],[-0.2937435507774353,0.11338113248348236,0],[-0.39937135577201843,0.1743815541267395,0],[-0.3286181092262268,0.23733896017074585,0],[-0.2937435507774353,0.11338113248348236,0],[-0.5240001082420349,0.038920897990465164,0],[-0.39937135577201843,0.1743815541267395,0],[-0.2937435507774353,0.11338113248348236,0],[-0.3286181092262268,0.23733896017074585,0],[-0.23484407365322113,0.19676770269870758,0],[-0.2937435507774353,0.11338113248348236,0],[-0.18295370042324066,0.055295493453741074,0],[-0.09791913628578186,0.00036372101749293506,0],[-0.2937435507774353,0.11338113248348236,0],[-0.5324565768241882,0.008043109439313412,0],[-0.5240001082420349,0.038920897990465164,0],[-0.09791913628578186,0.00036372101749293506,0],[-0.10748667269945145,0.04725825786590576,0],[-0.05208911374211311,0.0162054356187582,0],[-0.09791913628578186,0.00036372101749293506,0],[-0.18523892760276794,-0.07798518240451813,0],[-0.2783123254776001,-0.10396004468202591,0],[-0.09791913628578186,0.00036372101749293506,0],[-0.05208911374211311,0.0162054356187582,0],[-0.014363478869199753,-0.05202816054224968,0],[-0.09791913628578186,0.00036372101749293506,0],[-0.18295370042324066,0.055295493453741074,0],[-0.10748667269945145,0.04725825786590576,0],[-0.2783123254776001,-0.10396004468202591,0],[-0.4773484468460083,-0.046849433332681656,0],[-0.5324565768241882,0.008043109439313412,0],[-0.2783123254776001,-0.10396004468202591,0],[-0.18523892760276794,-0.07798518240451813,0],[-0.18010908365249634,-0.11171084642410278,0],[-0.2783123254776001,-0.10396004468202591,0],[-0.334538996219635,-0.12396079301834106,0],[-0.3776938021183014,-0.10782800614833832,0],[-0.2783123254776001,-0.10396004468202591,0],[-0.18010908365249634,-0.11171084642410278,0],[-0.24841752648353577,-0.18464961647987366,0],[-0.2783123254776001,-0.10396004468202591,0],[-0.24841752648353577,-0.18464961647987366,0],[-0.334538996219635,-0.12396079301834106,0],[-0.2783123254776001,-0.10396004468202591,0],[-0.3776938021183014,-0.10782800614833832,0],[-0.4773484468460083,-0.046849433332681656,0],[-0.032064758241176605,0.30072924494743347,0],[0.06211642175912857,0.31275543570518494,0],[0.050713200122117996,0.09692870080471039,0],[-0.032064758241176605,0.30072924494743347,0],[-0.08419256657361984,0.35216090083122253,0],[-0.01154017448425293,0.3469943702220917,0],[-0.032064758241176605,0.30072924494743347,0],[-0.01154017448425293,0.3469943702220917,0],[0.06211642175912857,0.31275543570518494,0],[-0.032064758241176605,0.30072924494743347,0],[0.050713200122117996,0.09692870080471039,0],[-0.032064758241176605,0.08556146174669266,0],[-0.032064758241176605,0.30072924494743347,0],[-0.2617219388484955,0.46301063895225525,0],[-0.08419256657361984,0.35216090083122253,0],[-0.032064758241176605,0.08556146174669266,0],[-0.10748667269945145,0.04725825786590576,0],[-0.23484407365322113,0.19676770269870758,0],[-0.032064758241176605,0.08556146174669266,0],[0.02093544788658619,0.0523127056658268,0],[-0.010218738578259945,0.017899414524435997,0],[-0.032064758241176605,0.08556146174669266,0],[-0.05208911374211311,0.0162054356187582,0],[-0.10748667269945145,0.04725825786590576,0],[-0.032064758241176605,0.08556146174669266,0],[-0.010218738578259945,0.017899414524435997,0],[-0.05208911374211311,0.0162054356187582,0],[-0.032064758241176605,0.08556146174669266,0],[0.050713200122117996,0.09692870080471039,0],[0.02093544788658619,0.0523127056658268,0],[-0.23484407365322113,0.19676770269870758,0],[-0.10748667269945145,0.04725825786590576,0],[-0.18295370042324066,0.055295493453741074,0],[-0.23484407365322113,0.19676770269870758,0],[-0.3286181092262268,0.23733896017074585,0],[-0.2617219388484955,0.46301063895225525,0],[0.2025873064994812,0.1706530898809433,0],[0.20874238014221191,0.08320517092943192,0],[0.14933504164218903,0.09614250808954239,0],[0.2025873064994812,0.1706530898809433,0],[0.14933504164218903,0.09614250808954239,0],[0.06211642175912857,0.08599614351987839,0],[0.2025873064994812,0.1706530898809433,0],[0.2585534155368805,0.14723767340183258,0],[0.20874238014221191,0.08320517092943192,0],[0.2025873064994812,0.1706530898809433,0],[0.22512230277061462,0.18698734045028687,0],[0.2585534155368805,0.14723767340183258,0],[0.06211642175912857,0.08599614351987839,0],[0.02093544788658619,0.0523127056658268,0],[0.050713200122117996,0.09692870080471039,0],[0.06211642175912857,0.08599614351987839,0],[0.14933504164218903,0.09614250808954239,0],[0.09962562471628189,0.03915441781282425,0],[0.06211642175912857,0.08599614351987839,0],[0.09962562471628189,0.03915441781282425,0],[0.02093544788658619,0.0523127056658268,0],[0.06211642175912857,0.08599614351987839,0],[0.050713200122117996,0.09692870080471039,0],[0.06211642175912857,0.31275543570518494,0],[0.06211642175912857,0.31275543570518494,0],[0.06019790098071098,0.3891279697418213,0],[0.2611284852027893,0.4627208709716797,0],[0.06211642175912857,0.31275543570518494,0],[-0.01154017448425293,0.3469943702220917,0],[0.06019790098071098,0.3891279697418213,0],[0.2611284852027893,0.4627208709716797,0],[0.33075010776519775,0.24769797921180725,0],[0.27630525827407837,0.3000730574131012,0],[0.2611284852027893,0.4627208709716797,0],[0.3650175929069519,0.5630600452423096,0],[0.33075010776519775,0.24769797921180725,0],[0.2611284852027893,0.4627208709716797,0],[0.2932949960231781,0.6079772114753723,0],[0.3650175929069519,0.5630600452423096,0],[0.2611284852027893,0.4627208709716797,0],[0.06211642175912857,0.4346838593482971,0],[0.2932949960231781,0.6079772114753723,0],[0.2611284852027893,0.4627208709716797,0],[0.27630525827407837,0.3000730574131012,0],[0.22512230277061462,0.18698734045028687,0],[0.2611284852027893,0.4627208709716797,0],[0.06019790098071098,0.3891279697418213,0],[0.06211642175912857,0.4346838593482971,0],[0.0990644246339798,0.0005086151650175452,0],[0.02093544788658619,0.0523127056658268,0],[0.09962562471628189,0.03915441781282425,0],[0.0990644246339798,0.0005086151650175452,0],[0.09370777755975723,-0.03757401555776596,0],[0.07669702172279358,-0.031432997435331345,0],[0.0990644246339798,0.0005086151650175452,0],[0.20874238014221191,0.08320517092943192,0],[0.2877890169620514,0.10946899652481079,0],[0.0990644246339798,0.0005086151650175452,0],[0.07669702172279358,-0.031432997435331345,0],[0.02093544788658619,0.0523127056658268,0],[0.0990644246339798,0.0005086151650175452,0],[0.135721817612648,-0.05977260321378708,0],[0.09370777755975723,-0.03757401555776596,0],[0.0990644246339798,0.0005086151650175452,0],[0.09962562471628189,0.03915441781282425,0],[0.20874238014221191,0.08320517092943192,0],[0.0990644246339798,0.0005086151650175452,0],[0.27264758944511414,-0.09990300983190536,0],[0.135721817612648,-0.05977260321378708,0],[0.2877890169620514,0.10946899652481079,0],[0.3931270241737366,0.17054186761379242,0],[0.3883458971977234,0.07232706993818283,0],[0.2877890169620514,0.10946899652481079,0],[0.3883458971977234,0.07232706993818283,0],[0.5174462199211121,0.008188003674149513,0],[0.2877890169620514,0.10946899652481079,0],[0.20874238014221191,0.08320517092943192,0],[0.2585534155368805,0.14723767340183258,0],[0.2877890169620514,0.10946899652481079,0],[0.2585534155368805,0.14723767340183258,0],[0.3931270241737366,0.17054186761379242,0],[0.5174462199211121,0.008188003674149513,0],[0.3781304955482483,-0.1609034389257431,0],[0.27264758944511414,-0.09990300983190536,0],[0.5174462199211121,0.008188003674149513,0],[0.6593700051307678,-0.03687406703829765,0],[0.3781304955482483,-0.1609034389257431,0],[0.5174462199211121,0.008188003674149513,0],[0.659007728099823,0.05317762866616249,0],[0.6593700051307678,-0.03687406703829765,0],[0.5174462199211121,0.008188003674149513,0],[0.3883458971977234,0.07232706993818283,0],[0.48067793250083923,0.12368301302194595,0],[0.5174462199211121,0.008188003674149513,0],[0.48067793250083923,0.12368301302194595,0],[0.659007728099823,0.05317762866616249,0],[0.6457499265670776,-0.3154330253601074,0],[0.5402669906616211,-0.2545050382614136,0],[0.7893956899642944,-0.22378744184970856,0],[0.6457499265670776,-0.3154330253601074,0],[0.5966308116912842,-0.3996889591217041,0],[0.5402669906616211,-0.2545050382614136,0],[0.6457499265670776,-0.3154330253601074,0],[0.7893956899642944,-0.22378744184970856,0],[0.8469122052192688,-0.22578968107700348,0],[0.6457499265670776,-0.3154330253601074,0],[0.6769722700119019,-0.39747217297554016,0],[0.5966308116912842,-0.3996889591217041,0],[0.6457499265670776,-0.3154330253601074,0],[0.8493261933326721,-0.43279725313186646,0],[0.6769722700119019,-0.39747217297554016,0],[0.8469122052192688,-0.22578968107700348,0],[0.8001180291175842,-0.17035795748233795,0],[0.8601281642913818,-0.2119879573583603,0],[0.8469122052192688,-0.22578968107700348,0],[0.7893956899642944,-0.22378744184970856,0],[0.8001180291175842,-0.17035795748233795,0],[0.8601281642913818,-0.2119879573583603,0],[0.8001180291175842,-0.17035795748233795,0],[0.8668917417526245,-0.19455254077911377,0],[0.8668917417526245,-0.19455254077911377,0],[0.8001180291175842,-0.17035795748233795,0],[0.8665238618850708,-0.1755889654159546,0],[0.8665238618850708,-0.1755889654159546,0],[0.8001180291175842,-0.17035795748233795,0],[0.8585730791091919,-0.15757879614830017,0],[0.8585730791091919,-0.15757879614830017,0],[0.8001180291175842,-0.17035795748233795,0],[0.8447713255882263,-0.14444097876548767,0],[0.8447713255882263,-0.14444097876548767,0],[0.8001180291175842,-0.17035795748233795,0],[0.8273359537124634,-0.1375245451927185,0],[0.8273359537124634,-0.1375245451927185,0],[0.8001180291175842,-0.17035795748233795,0],[0.8083723783493042,-0.1377532035112381,0],[0.8083723783493042,-0.1377532035112381,0],[0.8001180291175842,-0.17035795748233795,0],[0.7989754676818848,-0.14083559811115265,0],[0.7989754676818848,-0.14083559811115265,0],[0.8001180291175842,-0.17035795748233795,0],[0.5402669906616211,-0.2545050382614136,0],[0.5402669906616211,-0.2545050382614136,0],[0.33321332931518555,-0.2474776655435562,0],[0.3781304955482483,-0.1609034389257431,0],[0.5402669906616211,-0.2545050382614136,0],[0.49158260226249695,-0.3390507698059082,0],[0.33321332931518555,-0.2474776655435562,0],[0.5402669906616211,-0.2545050382614136,0],[0.5966308116912842,-0.3996889591217041,0],[0.49158260226249695,-0.3390507698059082,0],[0.5402669906616211,-0.2545050382614136,0],[0.8001180291175842,-0.17035795748233795,0],[0.7893956899642944,-0.22378744184970856,0],[0.6593700051307678,-0.03687406703829765,0],[0.6712898015975952,0.04554465040564537,0],[0.6714731454849243,-0.029285239055752754,0],[0.6593700051307678,-0.03687406703829765,0],[0.659007728099823,0.05317762866616249,0],[0.6712898015975952,0.04554465040564537,0],[0.6714731454849243,-0.029285239055752754,0],[0.6712898015975952,0.04554465040564537,0],[0.6866326928138733,-0.006065955385565758,0],[0.6866326928138733,-0.006065955385565758,0],[0.6712898015975952,0.04554465040564537,0],[0.6887110471725464,0.008043109439313412,0],[0.6887110471725464,0.008043109439313412,0],[0.6712898015975952,0.04554465040564537,0],[0.6866168975830078,0.022237073630094528,0],[0.659007728099823,0.05317762866616249,0],[0.48067793250083923,0.12368301302194595,0],[0.3931270241737366,0.17054186761379242,0],[0.3931270241737366,0.17054186761379242,0],[0.4908581078052521,0.3401404321193695,0],[0.5394700765609741,0.2549426853656769,0],[0.3931270241737366,0.17054186761379242,0],[0.33075010776519775,0.24769797921180725,0],[0.4908581078052521,0.3401404321193695,0],[0.3931270241737366,0.17054186761379242,0],[0.48067793250083923,0.12368301302194595,0],[0.3883458971977234,0.07232706993818283,0],[0.3931270241737366,0.17054186761379242,0],[0.2585534155368805,0.14723767340183258,0],[0.33075010776519775,0.24769797921180725,0],[0.5394700765609741,0.2549426853656769,0],[0.6448081135749817,0.31579822301864624,0],[0.6212678551673889,0.23305761814117432,0],[0.5394700765609741,0.2549426853656769,0],[0.4908581078052521,0.3401404321193695,0],[0.6448081135749817,0.31579822301864624,0],[0.5394700765609741,0.2549426853656769,0],[0.6212678551673889,0.23305761814117432,0],[0.8067785501480103,0.13735799491405487,0],[0.8067785501480103,0.13735799491405487,0],[0.8455125093460083,0.22553017735481262,0],[0.8377492427825928,0.14201554656028748,0],[0.8067785501480103,0.13735799491405487,0],[0.8377492427825928,0.14201554656028748,0],[0.8257421255111694,0.13703028857707977,0],[0.8067785501480103,0.13735799491405487,0],[0.6212678551673889,0.23305761814117432,0],[0.8455125093460083,0.22553017735481262,0],[0.8257421255111694,0.13703028857707977,0],[0.8377492427825928,0.14201554656028748,0],[0.8431774973869324,0.14386804401874542,0],[0.8431774973869324,0.14386804401874542,0],[0.8377492427825928,0.14201554656028748,0],[0.856979250907898,0.15701548755168915,0],[0.856979250907898,0.15701548755168915,0],[0.8377492427825928,0.14201554656028748,0],[0.8649305701255798,0.1751537173986435,0],[0.8649305701255798,0.1751537173986435,0],[0.8377492427825928,0.14201554656028748,0],[0.8653132319450378,0.1941973865032196,0],[0.8653132319450378,0.1941973865032196,0],[0.8377492427825928,0.14201554656028748,0],[0.8586050868034363,0.2116755247116089,0],[0.8586050868034363,0.2116755247116089,0],[0.8377492427825928,0.14201554656028748,0],[0.8455125093460083,0.22553017735481262,0],[0.8455125093460083,0.22553017735481262,0],[0.6212678551673889,0.23305761814117432,0],[0.6448081135749817,0.31579822301864624,0],[0.6448081135749817,0.31579822301864624,0],[0.5960512757301331,0.40114086866378784,0],[0.82105952501297,0.4529188275337219,0],[0.6448081135749817,0.31579822301864624,0],[0.4908581078052521,0.3401404321193695,0],[0.5960512757301331,0.40114086866378784,0],[0.6448081135749817,0.31579822301864624,0],[0.82105952501297,0.4529188275337219,0],[0.856451153755188,0.4391408860683441,0],[0.856451153755188,0.4391408860683441,0],[0.82105952501297,0.4529188275337219,0],[0.833956778049469,0.46223631501197815,0],[0.856451153755188,0.4391408860683441,0],[0.833956778049469,0.46223631501197815,0],[0.8679527044296265,0.45435675978660583,0],[0.8679527044296265,0.45435675978660583,0],[0.833956778049469,0.46223631501197815,0],[0.8727914094924927,0.47251012921333313,0],[0.8727914094924927,0.47251012921333313,0],[0.833956778049469,0.46223631501197815,0],[0.8482766151428223,0.4938187599182129,0],[0.8727914094924927,0.47251012921333313,0],[0.8482766151428223,0.4938187599182129,0],[0.870383083820343,0.49144795536994934,0],[0.870383083820343,0.49144795536994934,0],[0.8482766151428223,0.4938187599182129,0],[0.8662787675857544,0.5005382299423218,0],[0.8662787675857544,0.5005382299423218,0],[0.8482766151428223,0.4938187599182129,0],[0.8604899644851685,0.5086292028427124,0],[0.8604899644851685,0.5086292028427124,0],[0.8482766151428223,0.4938187599182129,0],[0.8453159928321838,0.5201689600944519,0],[0.8453159928321838,0.5201689600944519,0],[0.8482766151428223,0.4938187599182129,0],[0.8271637558937073,0.5250492691993713,0],[0.8271637558937073,0.5250492691993713,0],[0.8482766151428223,0.4938187599182129,0],[0.808213472366333,0.5227063298225403,0],[0.808213472366333,0.5227063298225403,0],[0.82105952501297,0.4529188275337219,0],[0.5960512757301331,0.40114086866378784,0],[0.808213472366333,0.5227063298225403,0],[0.833956778049469,0.46223631501197815,0],[0.82105952501297,0.4529188275337219,0],[0.808213472366333,0.5227063298225403,0],[0.8482766151428223,0.4938187599182129,0],[0.833956778049469,0.46223631501197815,0],[0.5960512757301331,0.40114086866378784,0],[0.4908581078052521,0.3401404321193695,0],[0.513348400592804,0.5125840306282043,0],[0.5960512757301331,0.40114086866378784,0],[0.513348400592804,0.5125840306282043,0],[0.6185794472694397,0.6199789643287659,0],[0.6185794472694397,0.6199789643287659,0],[0.6014026999473572,0.6526554226875305,0],[0.6131357550621033,0.638176441192627,0],[0.6185794472694397,0.6199789643287659,0],[0.5847659111022949,0.6617517471313477,0],[0.6014026999473572,0.6526554226875305,0],[0.6185794472694397,0.6199789643287659,0],[0.5650372505187988,0.6638433933258057,0],[0.5847659111022949,0.6617517471313477,0],[0.6185794472694397,0.6199789643287659,0],[0.5205613970756531,0.6205105781555176,0],[0.5650372505187988,0.6638433933258057,0],[0.6185794472694397,0.6199789643287659,0],[0.513348400592804,0.5125840306282043,0],[0.5205613970756531,0.6205105781555176,0],[0.5650372505187988,0.6638433933258057,0],[0.5205613970756531,0.6205105781555176,0],[0.5466416478157043,0.6584752202033997,0],[0.5466416478157043,0.6584752202033997,0],[0.5205613970756531,0.6205105781555176,0],[0.531896710395813,0.6468347311019897,0],[0.531896710395813,0.6468347311019897,0],[0.5205613970756531,0.6205105781555176,0],[0.5226022601127625,0.6302463412284851,0],[0.5205613970756531,0.6205105781555176,0],[0.513348400592804,0.5125840306282043,0],[0.4908581078052521,0.3401404321193695,0],[0.33075010776519775,0.24769797921180725,0],[0.2585534155368805,0.14723767340183258,0],[0.22512230277061462,0.18698734045028687,0],[0.33075010776519775,0.24769797921180725,0],[0.22512230277061462,0.18698734045028687,0],[0.27630525827407837,0.3000730574131012,0],[0.3650175929069519,0.5630600452423096,0],[0.2932949960231781,0.6079772114753723,0],[0.364542156457901,0.5773388743400574,0],[0.364542156457901,0.5773388743400574,0],[0.2932949960231781,0.6079772114753723,0],[0.3521808683872223,0.6021203398704529,0],[0.3521808683872223,0.6021203398704529,0],[0.2932949960231781,0.6079772114753723,0],[0.3411100506782532,0.6110199689865112,0],[0.3411100506782532,0.6110199689865112,0],[0.30514687299728394,0.6146672368049622,0],[0.328850656747818,0.6162294149398804,0],[0.3411100506782532,0.6110199689865112,0],[0.2932949960231781,0.6079772114753723,0],[0.30514687299728394,0.6146672368049622,0],[0.06211642175912857,0.4346838593482971,0],[-0.03199230879545212,0.595081627368927,0],[0.06211642175912857,0.594936728477478,0],[0.06211642175912857,0.4346838593482971,0],[-0.03199230879545212,0.42287498712539673,0],[-0.03199230879545212,0.595081627368927,0],[0.06211642175912857,0.4346838593482971,0],[0.06019790098071098,0.3891279697418213,0],[-0.016752298921346664,0.4163147807121277,0],[0.06211642175912857,0.4346838593482971,0],[-0.016752298921346664,0.4163147807121277,0],[-0.03199230879545212,0.42287498712539673,0],[0.06211642175912857,0.594936728477478,0],[0.06211642175912857,0.7166478037834167,0],[0.2835146486759186,0.7608405351638794,0],[0.06211642175912857,0.594936728477478,0],[-0.03199230879545212,0.595081627368927,0],[-0.0463532917201519,0.6543837785720825,0],[0.06211642175912857,0.594936728477478,0],[-0.0463532917201519,0.6543837785720825,0],[0.06211642175912857,0.7166478037834167,0],[0.2835146486759186,0.7608405351638794,0],[0.2356627881526947,0.845544695854187,0],[0.2872772812843323,0.7840057015419006,0],[0.2835146486759186,0.7608405351638794,0],[0.06211642175912857,0.7166478037834167,0],[0.2356627881526947,0.845544695854187,0],[0.2835146486759186,0.7608405351638794,0],[0.2872772812843323,0.7840057015419006,0],[0.290790319442749,0.7675151228904724,0],[0.290790319442749,0.7675151228904724,0],[0.2872772812843323,0.7840057015419006,0],[0.29959237575531006,0.7838969230651855,0],[0.29959237575531006,0.7838969230651855,0],[0.2872772812843323,0.7840057015419006,0],[0.30106252431869507,0.8024827241897583,0],[0.30106252431869507,0.8024827241897583,0],[0.2872772812843323,0.7840057015419006,0],[0.29039710760116577,0.8296652436256409,0],[0.29039710760116577,0.8296652436256409,0],[0.2872772812843323,0.7840057015419006,0],[0.26918086409568787,0.8469845652580261,0],[0.26918086409568787,0.8469845652580261,0],[0.2356627881526947,0.845544695854187,0],[0.25265955924987793,0.8499051332473755,0],[0.26918086409568787,0.8469845652580261,0],[0.2872772812843323,0.7840057015419006,0],[0.2356627881526947,0.845544695854187,0],[0.06211642175912857,0.7166478037834167,0],[-0.032064758241176605,0.7167927026748657,0],[0.03525716811418533,0.9367581009864807,0],[0.06211642175912857,0.7166478037834167,0],[-0.0463532917201519,0.6543837785720825,0],[-0.032064758241176605,0.7167927026748657,0],[0.06211642175912857,0.7166478037834167,0],[0.03525716811418533,0.9367581009864807,0],[0.06211642175912857,0.9517385363578796,0],[0.06211642175912857,0.9517385363578796,0],[0.03525716811418533,0.9367581009864807,0],[0.05438000708818436,0.9792648553848267,0],[0.05438000708818436,0.9792648553848267,0],[0.03525716811418533,0.9367581009864807,0],[0.04186449572443962,0.9925784468650818,0],[0.04186449572443962,0.9925784468650818,0],[0.03525716811418533,0.9367581009864807,0],[0.024849342182278633,1,0],[0.024849342182278633,1,0],[0.03525716811418533,0.9367581009864807,0],[0.005202321335673332,1,0],[0.005202321335673332,1,0],[0.03525716811418533,0.9367581009864807,0],[-0.01181283313781023,0.9925784468650818,0],[-0.01181283313781023,0.9925784468650818,0],[0.03525716811418533,0.9367581009864807,0],[-0.02432834543287754,0.9792648553848267,0],[-0.02432834543287754,0.9792648553848267,0],[0.03525716811418533,0.9367581009864807,0],[-0.031155630946159363,0.9616554379463196,0],[-0.031155630946159363,0.9616554379463196,0],[0.03525716811418533,0.9367581009864807,0],[-0.032064758241176605,0.7167927026748657,0],[-0.032064758241176605,0.7167927026748657,0],[-0.0463532917201519,0.6543837785720825,0],[-0.12930582463741302,0.7627535462379456,0],[-0.032064758241176605,0.7167927026748657,0],[-0.12930582463741302,0.7627535462379456,0],[-0.21966230869293213,0.845689594745636,0],[-0.21966230869293213,0.845689594745636,0],[-0.2667207717895508,0.7609854340553284,0],[-0.23938122391700745,0.8500500321388245,0],[-0.21966230869293213,0.845689594745636,0],[-0.12930582463741302,0.7627535462379456,0],[-0.15100060403347015,0.7621524333953857,0],[-0.21966230869293213,0.845689594745636,0],[-0.15100060403347015,0.7621524333953857,0],[-0.2667207717895508,0.7609854340553284,0],[-0.23938122391700745,0.8500500321388245,0],[-0.2859567403793335,0.7840418219566345,0],[-0.25945669412612915,0.8471294641494751,0],[-0.23938122391700745,0.8500500321388245,0],[-0.2667207717895508,0.7609854340553284,0],[-0.2859567403793335,0.7840418219566345,0],[-0.25945669412612915,0.8471294641494751,0],[-0.2859567403793335,0.7840418219566345,0],[-0.2769206762313843,0.8372540473937988,0],[-0.2769206762313843,0.8372540473937988,0],[-0.29115113615989685,0.8026276230812073,0],[-0.2884907126426697,0.8212099671363831,0],[-0.2769206762313843,0.8372540473937988,0],[-0.2859567403793335,0.7840418219566345,0],[-0.29115113615989685,0.8026276230812073,0],[-0.2667207717895508,0.7609854340553284,0],[-0.0463532917201519,0.6543837785720825,0],[-0.03199230879545212,0.595081627368927,0],[-0.2667207717895508,0.7609854340553284,0],[-0.15100060403347015,0.7621524333953857,0],[-0.0463532917201519,0.6543837785720825,0],[-0.03199230879545212,0.42287498712539673,0],[-0.08419256657361984,0.35216090083122253,0],[-0.2617219388484955,0.46301063895225525,0],[-0.03199230879545212,0.42287498712539673,0],[-0.016752298921346664,0.4163147807121277,0],[-0.01154017448425293,0.3469943702220917,0],[-0.03199230879545212,0.42287498712539673,0],[-0.01154017448425293,0.3469943702220917,0],[-0.08419256657361984,0.35216090083122253,0],[-0.03199230879545212,0.42287498712539673,0],[-0.2617219388484955,0.46301063895225525,0],[-0.29359865188598633,0.6083394289016724,0],[-0.29359865188598633,0.6083394289016724,0],[-0.37763723731040955,0.5634222626686096,0],[-0.3069741725921631,0.6150577664375305,0],[-0.29359865188598633,0.6083394289016724,0],[-0.3598012626171112,0.5186842083930969,0],[-0.37763723731040955,0.5634222626686096,0],[-0.29359865188598633,0.6083394289016724,0],[-0.2617219388484955,0.46301063895225525,0],[-0.3598012626171112,0.5186842083930969,0],[-0.3069741725921631,0.6150577664375305,0],[-0.37763723731040955,0.5634222626686096,0],[-0.3375287353992462,0.6165406703948975,0],[-0.3375287353992462,0.6165406703948975,0],[-0.36296671628952026,0.6023806929588318,0],[-0.35155630111694336,0.6112373471260071,0],[-0.3375287353992462,0.6165406703948975,0],[-0.37763723731040955,0.5634222626686096,0],[-0.36296671628952026,0.6023806929588318,0],[-0.36296671628952026,0.6023806929588318,0],[-0.37763723731040955,0.5634222626686096,0],[-0.37682220339775085,0.5776581168174744,0],[-0.37763723731040955,0.5634222626686096,0],[-0.3598012626171112,0.5186842083930969,0],[-0.34547072649002075,0.25769567489624023,0],[-0.34547072649002075,0.25769567489624023,0],[-0.39937135577201843,0.1743815541267395,0],[-0.45581936836242676,0.30750033259391785,0],[-0.34547072649002075,0.25769567489624023,0],[-0.3286181092262268,0.23733896017074585,0],[-0.39937135577201843,0.1743815541267395,0],[-0.34547072649002075,0.25769567489624023,0],[-0.45581936836242676,0.30750033259391785,0],[-0.48964038491249084,0.3402853310108185,0],[-0.34547072649002075,0.25769567489624023,0],[-0.3598012626171112,0.5186842083930969,0],[-0.2617219388484955,0.46301063895225525,0],[-0.34547072649002075,0.25769567489624023,0],[-0.2617219388484955,0.46301063895225525,0],[-0.3286181092262268,0.23733896017074585,0],[-0.48964038491249084,0.3402853310108185,0],[-0.595413088798523,0.40114086866378784,0],[-0.5834694504737854,0.4165639281272888,0],[-0.48964038491249084,0.3402853310108185,0],[-0.5391941666603088,0.25523248314857483,0],[-0.5753597021102905,0.26314303278923035,0],[-0.48964038491249084,0.3402853310108185,0],[-0.5834694504737854,0.4165639281272888,0],[-0.5198507905006409,0.6202932000160217,0],[-0.48964038491249084,0.3402853310108185,0],[-0.5753597021102905,0.26314303278923035,0],[-0.595413088798523,0.40114086866378784,0],[-0.48964038491249084,0.3402853310108185,0],[-0.45581936836242676,0.30750033259391785,0],[-0.5391941666603088,0.25523248314857483,0],[-0.5198507905006409,0.6202932000160217,0],[-0.5313057899475098,0.6465066075325012,0],[-0.5219247341156006,0.6300135850906372,0],[-0.5198507905006409,0.6202932000160217,0],[-0.5461305379867554,0.6580279469490051,0],[-0.5313057899475098,0.6465066075325012,0],[-0.5198507905006409,0.6202932000160217,0],[-0.5645584464073181,0.6633278727531433,0],[-0.5461305379867554,0.6580279469490051,0],[-0.5198507905006409,0.6202932000160217,0],[-0.6180891394615173,0.6197313070297241,0],[-0.5645584464073181,0.6633278727531433,0],[-0.5198507905006409,0.6202932000160217,0],[-0.5834694504737854,0.4165639281272888,0],[-0.5901151895523071,0.5458459854125977,0],[-0.5198507905006409,0.6202932000160217,0],[-0.5901151895523071,0.5458459854125977,0],[-0.6180891394615173,0.6197313070297241,0],[-0.5645584464073181,0.6633278727531433,0],[-0.6180891394615173,0.6197313070297241,0],[-0.5842934846878052,0.6612749099731445,0],[-0.5842934846878052,0.6612749099731445,0],[-0.6180891394615173,0.6197313070297241,0],[-0.6009413003921509,0.6522526741027832,0],[-0.6009413003921509,0.6522526741027832,0],[-0.6180891394615173,0.6197313070297241,0],[-0.612661600112915,0.6378546953201294,0],[-0.6180891394615173,0.6197313070297241,0],[-0.5901151895523071,0.5458459854125977,0],[-0.595413088798523,0.40114086866378784,0],[-0.595413088798523,0.40114086866378784,0],[-0.6446046233177185,0.3160880208015442,0],[-0.7918528914451599,0.49712899327278137,0],[-0.595413088798523,0.40114086866378784,0],[-0.5753597021102905,0.26314303278923035,0],[-0.6446046233177185,0.3160880208015442,0],[-0.595413088798523,0.40114086866378784,0],[-0.5901151895523071,0.5458459854125977,0],[-0.5834694504737854,0.4165639281272888,0],[-0.595413088798523,0.40114086866378784,0],[-0.7918528914451599,0.49712899327278137,0],[-0.8080586791038513,0.5228025317192078,0],[-0.8080586791038513,0.5228025317192078,0],[-0.7918528914451599,0.49712899327278137,0],[-0.826981782913208,0.5251726508140564,0],[-0.826981782913208,0.5251726508140564,0],[-0.7918528914451599,0.49712899327278137,0],[-0.8451340198516846,0.520292341709137,0],[-0.8451340198516846,0.520292341709137,0],[-0.7918528914451599,0.49712899327278137,0],[-0.8603351712226868,0.5087254643440247,0],[-0.8603351712226868,0.5087254643440247,0],[-0.7918528914451599,0.49712899327278137,0],[-0.8661477565765381,0.5006106495857239,0],[-0.8661477565765381,0.5006106495857239,0],[-0.7918528914451599,0.49712899327278137,0],[-0.8702308535575867,0.491568386554718,0],[-0.8702308535575867,0.491568386554718,0],[-0.7918528914451599,0.49712899327278137,0],[-0.8726170659065247,0.472695916891098,0],[-0.8726170659065247,0.472695916891098,0],[-0.7918528914451599,0.49712899327278137,0],[-0.8677495121955872,0.45458415150642395,0],[-0.8677495121955872,0.45458415150642395,0],[-0.7918528914451599,0.49712899327278137,0],[-0.8561715483665466,0.43940648436546326,0],[-0.8561715483665466,0.43940648436546326,0],[-0.7918528914451599,0.49712899327278137,0],[-0.6446046233177185,0.3160880208015442,0],[-0.6446046233177185,0.3160880208015442,0],[-0.5753597021102905,0.26314303278923035,0],[-0.6284266710281372,0.234224334359169,0],[-0.6446046233177185,0.3160880208015442,0],[-0.6284266710281372,0.234224334359169,0],[-0.694442629814148,0.2929976284503937,0],[-0.6446046233177185,0.3160880208015442,0],[-0.694442629814148,0.2929976284503937,0],[-0.8459529876708984,0.2253551483154297,0],[-0.8459529876708984,0.2253551483154297,0],[-0.8571162223815918,0.15666556358337402,0],[-0.8590101599693298,0.21143002808094025,0],[-0.8459529876708984,0.2253551483154297,0],[-0.8430060148239136,0.1435936838388443,0],[-0.8571162223815918,0.15666556358337402,0],[-0.8459529876708984,0.2253551483154297,0],[-0.8064315915107727,0.13722456991672516,0],[-0.8430060148239136,0.1435936838388443,0],[-0.8459529876708984,0.2253551483154297,0],[-0.694442629814148,0.2929976284503937,0],[-0.8064315915107727,0.13722456991672516,0],[-0.8590101599693298,0.21143002808094025,0],[-0.8571162223815918,0.15666556358337402,0],[-0.865754246711731,0.19388481974601746,0],[-0.865754246711731,0.19388481974601746,0],[-0.8571162223815918,0.15666556358337402,0],[-0.8653634190559387,0.17479784786701202,0],[-0.8430060148239136,0.1435936838388443,0],[-0.8064315915107727,0.13722456991672516,0],[-0.8254319429397583,0.13684846460819244,0],[-0.8064315915107727,0.13722456991672516,0],[-0.6284266710281372,0.234224334359169,0],[-0.5391941666603088,0.25523248314857483,0],[-0.8064315915107727,0.13722456991672516,0],[-0.694442629814148,0.2929976284503937,0],[-0.6284266710281372,0.234224334359169,0],[-0.5391941666603088,0.25523248314857483,0],[-0.6284266710281372,0.234224334359169,0],[-0.5753597021102905,0.26314303278923035,0],[-0.5391941666603088,0.25523248314857483,0],[-0.45581936836242676,0.30750033259391785,0],[-0.5115405917167664,0.24096256494522095,0],[-0.5391941666603088,0.25523248314857483,0],[-0.5115405917167664,0.24096256494522095,0],[-0.39937135577201843,0.1743815541267395,0],[-0.39937135577201843,0.1743815541267395,0],[-0.5240001082420349,0.038920897990465164,0],[-0.6743804216384888,0.05317762866616249,0],[-0.39937135577201843,0.1743815541267395,0],[-0.5115405917167664,0.24096256494522095,0],[-0.45581936836242676,0.30750033259391785,0],[-0.6743804216384888,0.05317762866616249,0],[-0.6747426390647888,-0.03694651648402214,0],[-0.6864835619926453,0.04551522061228752,0],[-0.6743804216384888,0.05317762866616249,0],[-0.5240001082420349,0.038920897990465164,0],[-0.5324565768241882,0.008043109439313412,0],[-0.6743804216384888,0.05317762866616249,0],[-0.5324565768241882,0.008043109439313412,0],[-0.6747426390647888,-0.03694651648402214,0],[-0.6864835619926453,0.04551522061228752,0],[-0.7037214636802673,0.008115556091070175,0],[-0.7016431093215942,0.022257449105381966,0],[-0.6864835619926453,0.04551522061228752,0],[-0.6747426390647888,-0.03694651648402214,0],[-0.7037214636802673,0.008115556091070175,0],[-0.7037214636802673,0.008115556091070175,0],[-0.6747426390647888,-0.03694651648402214,0],[-0.7017405033111572,-0.006067087408155203,0],[-0.7017405033111572,-0.006067087408155203,0],[-0.6747426390647888,-0.03694651648402214,0],[-0.6869114637374878,-0.029324857518076897,0],[-0.6747426390647888,-0.03694651648402214,0],[-0.4773484468460083,-0.046849433332681656,0],[-0.38495439291000366,-0.16488802433013916,0],[-0.6747426390647888,-0.03694651648402214,0],[-0.5324565768241882,0.008043109439313412,0],[-0.4773484468460083,-0.046849433332681656,0],[-0.38495439291000366,-0.16488802433013916,0],[-0.3488757610321045,-0.2581998407840729,0],[-0.5407155752182007,-0.25472238659858704,0],[-0.38495439291000366,-0.16488802433013916,0],[-0.4773484468460083,-0.046849433332681656,0],[-0.3776938021183014,-0.10782800614833832,0],[-0.38495439291000366,-0.16488802433013916,0],[-0.334538996219635,-0.12396079301834106,0],[-0.3488757610321045,-0.2581998407840729,0],[-0.38495439291000366,-0.16488802433013916,0],[-0.3776938021183014,-0.10782800614833832,0],[-0.334538996219635,-0.12396079301834106,0],[-0.5407155752182007,-0.25472238659858704,0],[-0.6457638144493103,-0.3156503438949585,0],[-0.7360799908638,-0.25518661737442017,0],[-0.5407155752182007,-0.25472238659858704,0],[-0.49087199568748474,-0.34006500244140625,0],[-0.5430727005004883,-0.287047803401947,0],[-0.5407155752182007,-0.25472238659858704,0],[-0.3488757610321045,-0.2581998407840729,0],[-0.49087199568748474,-0.34006500244140625,0],[-0.5407155752182007,-0.25472238659858704,0],[-0.5430727005004883,-0.287047803401947,0],[-0.5976599454879761,-0.3273831903934479,0],[-0.5407155752182007,-0.25472238659858704,0],[-0.7360799908638,-0.25518661737442017,0],[-0.7979026436805725,-0.14076314866542816,0],[-0.5407155752182007,-0.25472238659858704,0],[-0.5976599454879761,-0.3273831903934479,0],[-0.6457638144493103,-0.3156503438949585,0],[-0.7979026436805725,-0.14076314866542816,0],[-0.8464078903198242,-0.22609843313694,0],[-0.8029438853263855,-0.14158715307712555,0],[-0.7979026436805725,-0.14076314866542816,0],[-0.7360799908638,-0.25518661737442017,0],[-0.8464078903198242,-0.22609843313694,0],[-0.7979026436805725,-0.14076314866542816,0],[-0.8029438853263855,-0.14158715307712555,0],[-0.8072935938835144,-0.13767269253730774,0],[-0.8072935938835144,-0.13767269253730774,0],[-0.8029438853263855,-0.14158715307712555,0],[-0.8262249231338501,-0.13751958310604095,0],[-0.8262249231338501,-0.13751958310604095,0],[-0.8029438853263855,-0.14158715307712555,0],[-0.843634843826294,-0.14458289742469788,0],[-0.843634843826294,-0.14458289742469788,0],[-0.8029438853263855,-0.14158715307712555,0],[-0.8574586510658264,-0.15787777304649353,0],[-0.8574586510658264,-0.15787777304649353,0],[-0.8029438853263855,-0.14158715307712555,0],[-0.8654643297195435,-0.17600467801094055,0],[-0.8654643297195435,-0.17600467801094055,0],[-0.8029438853263855,-0.14158715307712555,0],[-0.8659335374832153,-0.19495297968387604,0],[-0.8659335374832153,-0.19495297968387604,0],[-0.8029438853263855,-0.14158715307712555,0],[-0.8593595027923584,-0.2123119831085205,0],[-0.8593595027923584,-0.2123119831085205,0],[-0.8029438853263855,-0.14158715307712555,0],[-0.8464078903198242,-0.22609843313694,0],[-0.8464078903198242,-0.22609843313694,0],[-0.7360799908638,-0.25518661737442017,0],[-0.6457638144493103,-0.3156503438949585,0],[-0.6457638144493103,-0.3156503438949585,0],[-0.6535957455635071,-0.3884078562259674,0],[-0.7494699358940125,-0.4225912094116211,0],[-0.6457638144493103,-0.3156503438949585,0],[-0.7494699358940125,-0.4225912094116211,0],[-0.8574307560920715,-0.43889597058296204,0],[-0.6457638144493103,-0.3156503438949585,0],[-0.5976599454879761,-0.3273831903934479,0],[-0.6535957455635071,-0.3884078562259674,0],[-0.8574307560920715,-0.43889597058296204,0],[-0.8092415928840637,-0.5224613547325134,0],[-0.8689631223678589,-0.4541735053062439,0],[-0.8574307560920715,-0.43889597058296204,0],[-0.7494699358940125,-0.4225912094116211,0],[-0.8092415928840637,-0.5224613547325134,0],[-0.8689631223678589,-0.4541735053062439,0],[-0.8092415928840637,-0.5224613547325134,0],[-0.8738157153129578,-0.47235462069511414,0],[-0.8738157153129578,-0.47235462069511414,0],[-0.8673068881034851,-0.500390350818634,0],[-0.8714110851287842,-0.4912998080253601,0],[-0.8738157153129578,-0.47235462069511414,0],[-0.8092415928840637,-0.5224613547325134,0],[-0.8673068881034851,-0.500390350818634,0],[-0.8673068881034851,-0.500390350818634,0],[-0.8463441133499146,-0.5200134515762329,0],[-0.8615180850028992,-0.5084810853004456,0],[-0.8673068881034851,-0.500390350818634,0],[-0.828191876411438,-0.524865984916687,0],[-0.8463441133499146,-0.5200134515762329,0],[-0.8673068881034851,-0.500390350818634,0],[-0.8092415928840637,-0.5224613547325134,0],[-0.828191876411438,-0.524865984916687,0],[-0.8092415928840637,-0.5224613547325134,0],[-0.6594935059547424,-0.4293631315231323,0],[-0.59657222032547,-0.4009929895401001,0],[-0.8092415928840637,-0.5224613547325134,0],[-0.7494699358940125,-0.4225912094116211,0],[-0.6594935059547424,-0.4293631315231323,0],[-0.59657222032547,-0.4009929895401001,0],[-0.49087199568748474,-0.34006500244140625,0],[-0.5441026091575623,-0.5120972394943237,0],[-0.59657222032547,-0.4009929895401001,0],[-0.6594935059547424,-0.4293631315231323,0],[-0.6535957455635071,-0.3884078562259674,0],[-0.59657222032547,-0.4009929895401001,0],[-0.6535957455635071,-0.3884078562259674,0],[-0.5976599454879761,-0.3273831903934479,0],[-0.59657222032547,-0.4009929895401001,0],[-0.5441026091575623,-0.5120972394943237,0],[-0.5812568664550781,-0.5230157971382141,0],[-0.59657222032547,-0.4009929895401001,0],[-0.5506254434585571,-0.3131994903087616,0],[-0.49087199568748474,-0.34006500244140625,0],[-0.59657222032547,-0.4009929895401001,0],[-0.5812568664550781,-0.5230157971382141,0],[-0.618369460105896,-0.6206196546554565,0],[-0.59657222032547,-0.4009929895401001,0],[-0.5976599454879761,-0.3273831903934479,0],[-0.5506254434585571,-0.3131994903087616,0],[-0.618369460105896,-0.6206196546554565,0],[-0.6010648012161255,-0.6534834504127502,0],[-0.6128787994384766,-0.6388853788375854,0],[-0.618369460105896,-0.6206196546554565,0],[-0.5843267440795898,-0.662675142288208,0],[-0.6010648012161255,-0.6534834504127502,0],[-0.618369460105896,-0.6206196546554565,0],[-0.5645323991775513,-0.6647633910179138,0],[-0.5843267440795898,-0.662675142288208,0],[-0.618369460105896,-0.6206196546554565,0],[-0.5222654938697815,-0.6307206153869629,0],[-0.5645323991775513,-0.6647633910179138,0],[-0.618369460105896,-0.6206196546554565,0],[-0.5812568664550781,-0.5230157971382141,0],[-0.5222654938697815,-0.6307206153869629,0],[-0.5645323991775513,-0.6647633910179138,0],[-0.5222654938697815,-0.6307206153869629,0],[-0.5461814999580383,-0.6592727303504944,0],[-0.5461814999580383,-0.6592727303504944,0],[-0.5222654938697815,-0.6307206153869629,0],[-0.5315152406692505,-0.6474587321281433,0],[-0.5222654938697815,-0.6307206153869629,0],[-0.5441026091575623,-0.5120972394943237,0],[-0.49087199568748474,-0.34006500244140625,0],[-0.5222654938697815,-0.6307206153869629,0],[-0.5812568664550781,-0.5230157971382141,0],[-0.5441026091575623,-0.5120972394943237,0],[-0.49087199568748474,-0.34006500244140625,0],[-0.5506254434585571,-0.3131994903087616,0],[-0.5430727005004883,-0.287047803401947,0],[-0.3488757610321045,-0.2581998407840729,0],[-0.37726524472236633,-0.5336626768112183,0],[-0.38002797961235046,-0.5472636222839355,0],[-0.3488757610321045,-0.2581998407840729,0],[-0.334538996219635,-0.12396079301834106,0],[-0.24841752648353577,-0.18464961647987366,0],[-0.3488757610321045,-0.2581998407840729,0],[-0.24841752648353577,-0.18464961647987366,0],[-0.2901249825954437,-0.26447218656539917,0],[-0.38002797961235046,-0.5472636222839355,0],[-0.34135597944259644,-0.6005348563194275,0],[-0.3795502781867981,-0.5616624355316162,0],[-0.38002797961235046,-0.5472636222839355,0],[-0.37726524472236633,-0.5336626768112183,0],[-0.34135597944259644,-0.6005348563194275,0],[-0.3795502781867981,-0.5616624355316162,0],[-0.35597556829452515,-0.5950786471366882,0],[-0.3671301603317261,-0.5863850116729736,0],[-0.3795502781867981,-0.5616624355316162,0],[-0.34135597944259644,-0.6005348563194275,0],[-0.35597556829452515,-0.5950786471366882,0],[-0.34135597944259644,-0.6005348563194275,0],[-0.37726524472236633,-0.5336626768112183,0],[-0.3079601526260376,-0.5989500284194946,0],[-0.3079601526260376,-0.5989500284194946,0],[-0.37726524472236633,-0.5336626768112183,0],[-0.29403331875801086,-0.5921807885169983,0],[-0.032499440014362335,-0.40671631693840027,0],[0.01041368953883648,-0.4419231712818146,0],[-0.032499440014362335,-0.5950786471366882,0],[-0.032499440014362335,-0.40671631693840027,0],[-0.00177862960845232,-0.37985581159591675,0],[0.01041368953883648,-0.4419231712818146,0],[-0.032499440014362335,-0.5950786471366882,0],[0.06211642175912857,-0.5951511263847351,0],[-0.03458171710371971,-0.6214426755905151,0],[-0.032499440014362335,-0.5950786471366882,0],[-0.03458171710371971,-0.6214426755905151,0],[-0.2689666450023651,-0.7616344690322876,0],[-0.032499440014362335,-0.5950786471366882,0],[0.01041368953883648,-0.4419231712818146,0],[0.06211642175912857,-0.5951511263847351,0],[-0.2689666450023651,-0.7616344690322876,0],[-0.260658860206604,-0.785307765007019,0],[-0.2874385118484497,-0.7845889925956726,0],[-0.2689666450023651,-0.7616344690322876,0],[-0.03458171710371971,-0.6214426755905151,0],[-0.14124298095703125,-0.7904700636863708,0],[-0.2689666450023651,-0.7616344690322876,0],[-0.14124298095703125,-0.7904700636863708,0],[-0.260658860206604,-0.785307765007019,0],[-0.2874385118484497,-0.7845889925956726,0],[-0.260658860206604,-0.785307765007019,0],[-0.29172733426094055,-0.8031747937202454,0],[-0.29172733426094055,-0.8031747937202454,0],[-0.260658860206604,-0.785307765007019,0],[-0.28835147619247437,-0.8218114972114563,0],[-0.28835147619247437,-0.8218114972114563,0],[-0.260658860206604,-0.785307765007019,0],[-0.2765769958496094,-0.8378614783287048,0],[-0.2765769958496094,-0.8378614783287048,0],[-0.260658860206604,-0.785307765007019,0],[-0.2586486041545868,-0.8477148413658142,0],[-0.2586486041545868,-0.8477148413658142,0],[-0.260658860206604,-0.785307765007019,0],[-0.23792195320129395,-0.8506608605384827,0],[-0.23792195320129395,-0.8506608605384827,0],[-0.260658860206604,-0.785307765007019,0],[-0.21771147847175598,-0.8463327288627625,0],[-0.21771147847175598,-0.8463327288627625,0],[-0.260658860206604,-0.785307765007019,0],[-0.14124298095703125,-0.7904700636863708,0],[-0.21771147847175598,-0.8463327288627625,0],[-0.14124298095703125,-0.7904700636863708,0],[-0.032064758241176605,-0.7167173027992249,0],[-0.032064758241176605,-0.7167173027992249,0],[0.06211642175912857,-0.7167173027992249,0],[0.03800278902053833,-0.9397580623626709,0],[-0.032064758241176605,-0.7167173027992249,0],[0.03800278902053833,-0.9397580623626709,0],[-0.032064758241176605,-0.9517355561256409,0],[-0.032064758241176605,-0.7167173027992249,0],[-0.03458171710371971,-0.6214426755905151,0],[0.06211642175912857,-0.7167173027992249,0],[-0.032064758241176605,-0.7167173027992249,0],[-0.14124298095703125,-0.7904700636863708,0],[-0.03458171710371971,-0.6214426755905151,0],[-0.032064758241176605,-0.9517355561256409,0],[0.03800278902053833,-0.9397580623626709,0],[0.04020942375063896,-0.9554398059844971,0],[-0.032064758241176605,-0.9517355561256409,0],[0.04020942375063896,-0.9554398059844971,0],[-0.02432834543287754,-0.979293704032898,0],[-0.02432834543287754,-0.979293704032898,0],[0.04020942375063896,-0.9554398059844971,0],[-0.01181283313781023,-0.9925945401191711,0],[-0.01181283313781023,-0.9925945401191711,0],[0.04020942375063896,-0.9554398059844971,0],[0.005202321335673332,-1,0],[0.005202321335673332,-1,0],[0.04020942375063896,-0.9554398059844971,0],[0.024849342182278633,-1,0],[0.024849342182278633,-1,0],[0.04020942375063896,-0.9554398059844971,0],[0.04186449572443962,-0.9925945401191711,0],[0.04186449572443962,-0.9925945401191711,0],[0.04020942375063896,-0.9554398059844971,0],[0.04747403785586357,-0.9602912068367004,0],[0.04186449572443962,-0.9925945401191711,0],[0.04747403785586357,-0.9602912068367004,0],[0.05438000708818436,-0.979293704032898,0],[0.05438000708818436,-0.979293704032898,0],[0.04747403785586357,-0.9602912068367004,0],[0.06120729446411133,-0.9616732597351074,0],[0.06120729446411133,-0.9616732597351074,0],[0.03800278902053833,-0.9397580623626709,0],[0.06211642175912857,-0.7167173027992249,0],[0.06120729446411133,-0.9616732597351074,0],[0.04747403785586357,-0.9602912068367004,0],[0.03800278902053833,-0.9397580623626709,0],[0.06211642175912857,-0.7167173027992249,0],[0.06211642175912857,-0.5951511263847351,0],[0.2267940789461136,-0.7535961866378784,0],[0.06211642175912857,-0.7167173027992249,0],[-0.03458171710371971,-0.6214426755905151,0],[0.06211642175912857,-0.5951511263847351,0],[0.06211642175912857,-0.7167173027992249,0],[0.2267940789461136,-0.7535961866378784,0],[0.23431827127933502,-0.8457561135292053,0],[0.23431827127933502,-0.8457561135292053,0],[0.2692570090293884,-0.8471671342849731,0],[0.251960813999176,-0.8501003980636597,0],[0.23431827127933502,-0.8457561135292053,0],[0.29119402170181274,-0.8298795819282532,0],[0.2692570090293884,-0.8471671342849731,0],[0.23431827127933502,-0.8457561135292053,0],[0.2853982448577881,-0.7610548734664917,0],[0.29119402170181274,-0.8298795819282532,0],[0.23431827127933502,-0.8457561135292053,0],[0.2267940789461136,-0.7535961866378784,0],[0.2853982448577881,-0.7610548734664917,0],[0.29119402170181274,-0.8298795819282532,0],[0.2853982448577881,-0.7610548734664917,0],[0.3021714389324188,-0.8026270270347595,0],[0.3021714389324188,-0.8026270270347595,0],[0.2853982448577881,-0.7610548734664917,0],[0.3011130392551422,-0.7840285301208496,0],[0.3011130392551422,-0.7840285301208496,0],[0.2853982448577881,-0.7610548734664917,0],[0.292624294757843,-0.7676849365234375,0],[0.2853982448577881,-0.7610548734664917,0],[0.2267940789461136,-0.7535961866378784,0],[0.06211642175912857,-0.5951511263847351,0],[0.06211642175912857,-0.5951511263847351,0],[0.01041368953883648,-0.4419231712818146,0],[0.06211642175912857,-0.4183802902698517,0],[0.06211642175912857,-0.4183802902698517,0],[0.01041368953883648,-0.4419231712818146,0],[-0.00177862960845232,-0.37985581159591675,0],[0.06211642175912857,-0.4183802902698517,0],[-0.00177862960845232,-0.37985581159591675,0],[0.06211642175912857,-0.2965243458747864,0],[0.29307764768600464,-0.5920358896255493,0],[0.3309357762336731,-0.6000843048095703,0],[0.3052804470062256,-0.5987032651901245,0],[0.29307764768600464,-0.5920358896255493,0],[0.3547312319278717,-0.585821270942688,0],[0.3309357762336731,-0.6000843048095703,0],[0.29307764768600464,-0.5920358896255493,0],[0.3662344515323639,-0.5608044266700745,0],[0.3547312319278717,-0.585821270942688,0],[0.29307764768600464,-0.5920358896255493,0],[0.36653897166252136,-0.5463942289352417,0],[0.3662344515323639,-0.5608044266700745,0],[0.3309357762336731,-0.6000843048095703,0],[0.3547312319278717,-0.585821270942688,0],[0.34379059076309204,-0.5949337482452393,0],[0.36653897166252136,-0.5463942289352417,0],[0.324548602104187,-0.3197607398033142,0],[0.33321332931518555,-0.2474776655435562,0],[0.49158260226249695,-0.3390507698059082,0],[0.5966308116912842,-0.3996889591217041,0],[0.5231931209564209,-0.6292901039123535,0],[0.5231931209564209,-0.6292901039123535,0],[0.5470740795135498,-0.6576598882675171,0],[0.5324355363845825,-0.6459268927574158,0],[0.5231931209564209,-0.6292901039123535,0],[0.5653632879257202,-0.6631036400794983,0],[0.5470740795135498,-0.6576598882675171,0],[0.5231931209564209,-0.6292901039123535,0],[0.6189692616462708,-0.6190613508224487,0],[0.5653632879257202,-0.6631036400794983,0],[0.5231931209564209,-0.6292901039123535,0],[0.5966308116912842,-0.3996889591217041,0],[0.6189692616462708,-0.6190613508224487,0],[0.5653632879257202,-0.6631036400794983,0],[0.6189692616462708,-0.6190613508224487,0],[0.5850768089294434,-0.6609971523284912,0],[0.5850768089294434,-0.6609971523284912,0],[0.6134800314903259,-0.637313187122345,0],[0.6017319560050964,-0.6518464684486389,0],[0.5850768089294434,-0.6609971523284912,0],[0.6189692616462708,-0.6190613508224487,0],[0.6134800314903259,-0.637313187122345,0],[0.5966308116912842,-0.3996889591217041,0],[0.6769722700119019,-0.39747217297554016,0],[0.8092764019966125,-0.521350622177124,0],[0.8092764019966125,-0.521350622177124,0],[0.6769722700119019,-0.39747217297554016,0],[0.8493261933326721,-0.43279725313186646,0],[0.8092764019966125,-0.521350622177124,0],[0.8493261933326721,-0.43279725313186646,0],[0.8281995058059692,-0.5237207412719727,0],[0.8281995058059692,-0.5237207412719727,0],[0.8493261933326721,-0.43279725313186646,0],[0.8463517427444458,-0.5188404321670532,0],[0.8463517427444458,-0.5188404321670532,0],[0.8493261933326721,-0.43279725313186646,0],[0.861552894115448,-0.5072735548019409,0],[0.861552894115448,-0.5072735548019409,0],[0.8493261933326721,-0.43279725313186646,0],[0.8673654794692993,-0.4991587698459625,0],[0.8673654794692993,-0.4991587698459625,0],[0.8493261933326721,-0.43279725313186646,0],[0.8714455962181091,-0.4900889992713928,0],[0.8714455962181091,-0.4900889992713928,0],[0.8493261933326721,-0.43279725313186646,0],[0.8738157153129578,-0.4711548686027527,0],[0.8738157153129578,-0.4711548686027527,0],[0.8493261933326721,-0.43279725313186646,0],[0.8689354062080383,-0.4529610276222229,0],[0.8689354062080383,-0.4529610276222229,0],[0.8493261933326721,-0.43279725313186646,0],[0.857368528842926,-0.4376673400402069,0],[0.02093544788658619,0.0523127056658268,0],[0.07669702172279358,-0.031432997435331345,0],[-0.010218738578259945,0.017899414524435997,0],[-0.5430727005004883,-0.287047803401947,0],[-0.5506254434585571,-0.3131994903087616,0],[-0.5976599454879761,-0.3273831903934479,0],[-0.0463532917201519,0.6543837785720825,0],[-0.15100060403347015,0.7621524333953857,0],[-0.12930582463741302,0.7627535462379456,0],[0.03800278902053833,-0.9397580623626709,0],[0.04747403785586357,-0.9602912068367004,0],[0.04020942375063896,-0.9554398059844971,0],[0.20874238014221191,0.08320517092943192,0],[0.09962562471628189,0.03915441781282425,0],[0.14933504164218903,0.09614250808954239,0],[-0.014363478869199753,-0.05202816054224968,0],[-0.05208911374211311,0.0162054356187582,0],[-0.010218738578259945,0.017899414524435997,0],[-0.014363478869199753,-0.05202816054224968,0],[-0.010218738578259945,0.017899414524435997,0],[0.07669702172279358,-0.031432997435331345,0],[0.06019790098071098,0.3891279697418213,0],[-0.01154017448425293,0.3469943702220917,0],[-0.016752298921346664,0.4163147807121277,0],[-0.6594935059547424,-0.4293631315231323,0],[-0.7494699358940125,-0.4225912094116211,0],[-0.6535957455635071,-0.3884078562259674,0],[-0.24841752648353577,-0.18464961647987366,0],[-0.24288570880889893,-0.19698207080364227,0],[-0.2901249825954437,-0.26447218656539917,0]],"cells":[[0,1,2],[3,4,5],[6,7,8],[9,10,11],[12,13,14],[15,16,17],[18,19,20],[21,22,23],[24,25,26],[27,28,29],[30,31,32],[33,34,35],[36,37,38],[39,40,41],[42,43,44],[45,46,47],[48,49,50],[51,52,53],[54,55,56],[57,58,59],[60,61,62],[63,64,65],[66,67,68],[69,70,71],[72,73,74],[75,76,77],[78,79,80],[81,82,83],[84,85,86],[87,88,89],[90,91,92],[93,94,95],[96,97,98],[99,100,101],[102,103,104],[105,106,107],[108,109,110],[111,112,113],[114,115,116],[117,118,119],[120,121,122],[123,124,125],[126,127,128],[129,130,131],[132,133,134],[135,136,137],[138,139,140],[141,142,143],[144,145,146],[147,148,149],[150,151,152],[153,154,155],[156,157,158],[159,160,161],[162,163,164],[165,166,167],[168,169,170],[171,172,173],[174,175,176],[177,178,179],[180,181,182],[183,184,185],[186,187,188],[189,190,191],[192,193,194],[195,196,197],[198,199,200],[201,202,203],[204,205,206],[207,208,209],[210,211,212],[213,214,215],[216,217,218],[219,220,221],[222,223,224],[225,226,227],[228,229,230],[231,232,233],[234,235,236],[237,238,239],[240,241,242],[243,244,245],[246,247,248],[249,250,251],[252,253,254],[255,256,257],[258,259,260],[261,262,263],[264,265,266],[267,268,269],[270,271,272],[273,274,275],[276,277,278],[279,280,281],[282,283,284],[285,286,287],[288,289,290],[291,292,293],[294,295,296],[297,298,299],[300,301,302],[303,304,305],[306,307,308],[309,310,311],[312,313,314],[315,316,317],[318,319,320],[321,322,323],[324,325,326],[327,328,329],[330,331,332],[333,334,335],[336,337,338],[339,340,341],[342,343,344],[345,346,347],[348,349,350],[351,352,353],[354,355,356],[357,358,359],[360,361,362],[363,364,365],[366,367,368],[369,370,371],[372,373,374],[375,376,377],[378,379,380],[381,382,383],[384,385,386],[387,388,389],[390,391,392],[393,394,395],[396,397,398],[399,400,401],[402,403,404],[405,406,407],[408,409,410],[411,412,413],[414,415,416],[417,418,419],[420,421,422],[423,424,425],[426,427,428],[429,430,431],[432,433,434],[435,436,437],[438,439,440],[441,442,443],[444,445,446],[447,448,449],[450,451,452],[453,454,455],[456,457,458],[459,460,461],[462,463,464],[465,466,467],[468,469,470],[471,472,473],[474,475,476],[477,478,479],[480,481,482],[483,484,485],[486,487,488],[489,490,491],[492,493,494],[495,496,497],[498,499,500],[501,502,503],[504,505,506],[507,508,509],[510,511,512],[513,514,515],[516,517,518],[519,520,521],[522,523,524],[525,526,527],[528,529,530],[531,532,533],[534,535,536],[537,538,539],[540,541,542],[543,544,545],[546,547,548],[549,550,551],[552,553,554],[555,556,557],[558,559,560],[561,562,563],[564,565,566],[567,568,569],[570,571,572],[573,574,575],[576,577,578],[579,580,581],[582,583,584],[585,586,587],[588,589,590],[591,592,593],[594,595,596],[597,598,599],[600,601,602],[603,604,605],[606,607,608],[609,610,611],[612,613,614],[615,616,617],[618,619,620],[621,622,623],[624,625,626],[627,628,629],[630,631,632],[633,634,635],[636,637,638],[639,640,641],[642,643,644],[645,646,647],[648,649,650],[651,652,653],[654,655,656],[657,658,659],[660,661,662],[663,664,665],[666,667,668],[669,670,671],[672,673,674],[675,676,677],[678,679,680],[681,682,683],[684,685,686],[687,688,689],[690,691,692],[693,694,695],[696,697,698],[699,700,701],[702,703,704],[705,706,707],[708,709,710],[711,712,713],[714,715,716],[717,718,719],[720,721,722],[723,724,725],[726,727,728],[729,730,731],[732,733,734],[735,736,737],[738,739,740],[741,742,743],[744,745,746],[747,748,749],[750,751,752],[753,754,755],[756,757,758],[759,760,761],[762,763,764],[765,766,767],[768,769,770],[771,772,773],[774,775,776],[777,778,779],[780,781,782],[783,784,785],[786,787,788],[789,790,791],[792,793,794],[795,796,797],[798,799,800],[801,802,803],[804,805,806],[807,808,809],[810,811,812],[813,814,815],[816,817,818],[819,820,821],[822,823,824],[825,826,827],[828,829,830],[831,832,833],[834,835,836],[837,838,839],[840,841,842],[843,844,845],[846,847,848],[849,850,851],[852,853,854],[855,856,857],[858,859,860],[861,862,863],[864,865,866],[867,868,869],[870,871,872],[873,874,875],[876,877,878],[879,880,881],[882,883,884],[885,886,887],[888,889,890],[891,892,893],[894,895,896],[897,898,899],[900,901,902],[903,904,905],[906,907,908],[909,910,911],[912,913,914],[915,916,917],[918,919,920],[921,922,923],[924,925,926],[927,928,929],[930,931,932],[933,934,935],[936,937,938],[939,940,941],[942,943,944],[945,946,947],[948,949,950],[951,952,953],[954,955,956],[957,958,959],[960,961,962],[963,964,965],[966,967,968],[969,970,971],[972,973,974],[975,976,977],[978,979,980],[981,982,983],[984,985,986],[987,988,989],[990,991,992],[993,994,995],[996,997,998],[999,1000,1001],[1002,1003,1004],[1005,1006,1007],[1008,1009,1010],[1011,1012,1013],[1014,1015,1016],[1017,1018,1019],[1020,1021,1022],[1023,1024,1025],[1026,1027,1028],[1029,1030,1031],[1032,1033,1034],[1035,1036,1037],[1038,1039,1040],[1041,1042,1043],[1044,1045,1046],[1047,1048,1049],[1050,1051,1052],[1053,1054,1055],[1056,1057,1058],[1059,1060,1061],[1062,1063,1064],[1065,1066,1067],[1068,1069,1070],[1071,1072,1073],[1074,1075,1076],[1077,1078,1079],[1080,1081,1082],[1083,1084,1085],[1086,1087,1088],[1089,1090,1091],[1092,1093,1094],[1095,1096,1097],[1098,1099,1100],[1101,1102,1103],[1104,1105,1106],[1107,1108,1109],[1110,1111,1112],[1113,1114,1115],[1116,1117,1118],[1119,1120,1121],[1122,1123,1124],[1125,1126,1127],[1128,1129,1130],[1131,1132,1133],[1134,1135,1136],[1137,1138,1139],[1140,1141,1142],[1143,1144,1145],[1146,1147,1148],[1149,1150,1151],[1152,1153,1154],[1155,1156,1157],[1158,1159,1160],[1161,1162,1163],[1164,1165,1166],[1167,1168,1169],[1170,1171,1172],[1173,1174,1175],[1176,1177,1178],[1179,1180,1181],[1182,1183,1184],[1185,1186,1187],[1188,1189,1190],[1191,1192,1193],[1194,1195,1196],[1197,1198,1199],[1200,1201,1202],[1203,1204,1205],[1206,1207,1208],[1209,1210,1211],[1212,1213,1214],[1215,1216,1217],[1218,1219,1220],[1221,1222,1223],[1224,1225,1226],[1227,1228,1229],[1230,1231,1232],[1233,1234,1235],[1236,1237,1238],[1239,1240,1241],[1242,1243,1244],[1245,1246,1247],[1248,1249,1250]]};
        </script>

        <script>
            const { Program, ArrayBuffer, IndexBuffer, Texture } = window.nanogl;

            const canvas = document.createElement('canvas');
            document.body.appendChild(canvas);

            const gl = canvas.getContext('webgl') || canvas.getContext('experimental-webgl');
            if(!gl) throw 'WebGL not supported';

            gl.blendFunc(gl.SRC_ALPHA, gl.ONE_MINUS_SRC_ALPHA);
            gl.enable(gl.BLEND);
            gl.enable(gl.DEPTH_TEST);

            const NUM_PARTICLES = 6000;

            const uniforms = {
              u_time: 0,
              u_view: mat4.create(),
              u_mouse: [0, 0],
              u_resolution: [],
              u_projection: mat4.create()
            };

            const camera = {};
            camera.eye = [0, 0, 5];
            camera.target = [0, 0, 0];
            camera.up = [0, 1, 0];

            const transform = {};
            transform.rotation = [0, 0, 0];

            class Snowstorm {

              constructor(gl) {

                const vert = document.getElementById('snowstorm-vert').textContent;
                const frag = document.getElementById('snowstorm-frag').textContent;

                this.gl = gl;
                this.program = new Program(gl, vert, frag, `
                  precision highp float;
                  #define PI 3.141592653589793
                  #define TWO_PI 6.283185307179586
                  #define HALF_PI 1.5707963267948966
                `);

                this.program.use();
                this.model = mat4.translate([], mat4.create(), [0, 25, 0]);

                const particles = fill(NUM_PARTICLES, function(i) {
                  const x = random(-20, 20);
                  const y = -50;
                  const z = random(-50);
                  return [ x, y, z ];
                }).reduce((result, p) => result.concat(p[0], p[1], p[2]), []);

                const position = new ArrayBuffer(gl);
                position.attrib('position', 3, gl.FLOAT);
                position.data(new Float32Array(particles));

                const offset = new ArrayBuffer(gl);
                offset.attrib('offset', 1, gl.FLOAT);
                offset.data(new Float32Array(fill(NUM_PARTICLES, i => random())));

                const size = new ArrayBuffer(gl);
                size.attrib('size', 1, gl.FLOAT);
                size.data(new Float32Array(fill(NUM_PARTICLES, i => random(1, 6))));

                this.buffers = { position, offset, size };
              }

              uniforms(uniforms) {

                this.program.use();

                for(let name in uniforms) {
                  let setter = this.program[name];
                  if(setter === undefined) continue;
                  setter(uniforms[name]);
                }

                return this;
              }

              render() {

                const gl = this.gl;

                this.program.use();
                this.program.u_model(this.model);

                for(const key in this.buffers) {
                  this.buffers[key].attribPointer(this.program);
                }

                this.buffers.position.bind();
                this.buffers.position.draw(gl.POINTS);
              }
            }

            class Snowflake {

              constructor(gl) {

                // snowflake-complex.js
                const positions = window.complex.positions.reduce((result, value) => {
                  return result.concat([value[0], value[1], value[2]]);
                }, []);

                const cells = fill(window.complex.positions.length, i => i);

                const vert = document.getElementById('snowflake-vert').textContent;
                const frag = document.getElementById('snowflake-frag').textContent;

                this.gl = gl;
                this.program = new Program(gl, vert, frag, `
                  precision mediump float;
                  #define PI 3.141592653589793
                  #define TWO_PI 6.283185307179586
                  #define HALF_PI 1.5707963267948966
                `);
                this.program.use();
                this.model = mat4.create();

                const position = new ArrayBuffer(gl);
                position.attrib('position', 3, gl.FLOAT);
                position.attribPointer(this.program);
                position.data(new Float32Array(positions));

                const colors = cells.reduce(result => {
                  const rgba = [1.0, 1.0, 1.0, 0.1 + Math.random() * 0.5];
                    return result.concat(rgba, rgba, rgba);
                }, []);

                const color = new ArrayBuffer(gl);
                color.attrib('color', 4, gl.FLOAT);
                color.attribPointer(this.program);
                color.data(new Float32Array(colors));

                const index = new ArrayBuffer(gl);
                const indices = cells.reduce((result, i) => result.concat([i, i, i]), []);
                index.attrib('index', 1, gl.FLOAT);
                index.attribPointer(this.program);
                index.data(new Float32Array(indices));

                this.buffers = { position, color, index };
                this.elements = new IndexBuffer(gl);
                this.elements.data(new Uint16Array(cells));
              }

              // nanogl's program.my_uniform() is convenient for setting uniforms,
              // but not necessarily safe according to "Can we use the setters directly?"
              // https://webglfundamentals.org/webgl/lessons/webgl-less-code-more-fun.html
              // this uniforms() method addresses that
              // program.uniforms({ u_model: model, u_projection: projection });
              uniforms(uniforms) {

                this.program.use();

                for(const name in uniforms) {
                  const setter = this.program[name];
                  if(setter === undefined) continue;
                  setter(uniforms[name]);
                }

                return this;
              }

              render() {

                const gl = this.gl;
                const model = this.model;

                this.program.use();
                this.program.u_model(this.model);

                for(const key in this.buffers) {
                  this.buffers[key].attribPointer(this.program);
                }

                this.elements.bind();
                this.elements.draw(gl.TRIANGLES);
              }
            }

            const snowstorm = new Snowstorm(gl);
            const snowflake = new Snowflake(gl);

            function centroid(triangle) {

              const dimension = triangle[0].length;
              let result = new Array(dimension);

              for(let i = 0; i < dimension; i++) {
                const t0 = triangle[0][i];
                const t1 = triangle[1][i];
                const t2 = triangle[2][i];
                result[i] = (t0 + t1 + t2) / 3;
              }

              return result;
            }

            function fill(size, fn) {
              const array = Array(size);
              for(let i = 0; i < size; i++) {
                array[i] = fn(i);
              }
              return array;
            }

            function random(min, max) {

              if(arguments.length == 0) {
                return Math.random();
              }

              if(Array.isArray(min)) {
                return min[ Math.floor(Math.random() * min.length) ];
              }

              if(typeof min == 'undefined') min = 1;
              if(typeof max == 'undefined') max = min || 1, min = 0;

              return min + Math.random() * (max - min);
            }

            function resize(event) {

              const scale = window.devicePixelRatio || 1;
              const width = window.innerWidth;
              const height = window.innerHeight;

              gl.canvas.width = width * scale;
              gl.canvas.height = height * scale;
              gl.viewport(0, 0, gl.canvas.width, gl.canvas.height);

              uniforms.u_resolution = [width, height];
              mat4.perspective(uniforms.u_projection, Math.PI / 4, width / height, 0.01, 100);
            }

            function mousemove(event) {
              event.preventDefault();
              const width = window.innerWidth;
              const height = window.innerHeight;
              const x = (event.touches) ? event.touches[0].pageX : event.pageX;
              const y = (event.touches) ? event.touches[0].pageY : event.pageY;
              uniforms.u_mouse[0] = (x / width)  *  2 - 1;
              uniforms.u_mouse[1] = (y / height) * -2 + 1;
            }

            function animate(time) {

              uniforms.u_time = time;
              mat4.lookAt(uniforms.u_view, camera.eye, camera.target, camera.up);

              snowstorm.uniforms(uniforms);
              snowstorm.render();

              const mouse = [...uniforms.u_mouse];
              transform.rotation[0] += (-mouse[0] - transform.rotation[0]) * 0.1;
              transform.rotation[1] += ( mouse[1] - transform.rotation[1]) * 0.1;

              const model = snowflake.model;
              mat4.identity(model);
              mat4.rotateX(model, model, transform.rotation[1]);
              mat4.rotateY(model, model, transform.rotation[0]);

              snowflake.uniforms(uniforms);
              snowflake.uniforms({u_model: model});
              snowflake.render();

              requestAnimationFrame(animate);
            }

            function init() {
              window.addEventListener('resize', resize);
              window.addEventListener('mousemove', mousemove);
              window.addEventListener('touchmove', mousemove);
              window.addEventListener('touchend', (event) => uniforms.u_mouse = [0, 0]);
              window.addEventListener('contextmenu', (event) => event.preventDefault());
              resize();
              requestAnimationFrame(animate);
            }

            init();
        </script>
	</body>
</html>
本文作者： ionluo
本文链接： http://www.ionluo.cn/blog/posts/78bd14cd.html
版权声明： 本作品采用 知识共享署名-非商业性使用-相同方式共享 4.0 国际许可协议 进行许可。转载请注明出处！
知识共享许可协议

扫一扫，分享到微信

微信分享二维码

tag:

    缺失模块。
    1、请确保node版本大于6.2
    2、在博客根目录（注意不是yilia根目录）执行以下命令：
    npm i hexo-generator-json-content --save

    3、在根目录_config.yml里添加配置：

      jsonContent:
    meta: false
    pages: false
    posts:
      title: true
      date: true
      path: true
      text: false
      raw: false
      content: false
      slug: false
      updated: false
      comments: false
      link: false
      permalink: false
      excerpt: false
      categories: false
      tags: true
